NSN 6240-01-147-0379
Part Details | INCANDESCENT LAMP
6240-01-147-0379 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: DATDAK, DAT/DAK, 6240-01-147-0379, 01-147-0379, 6240011470379, 011470379
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | FEB 09, 1983 | 01-147-0379 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

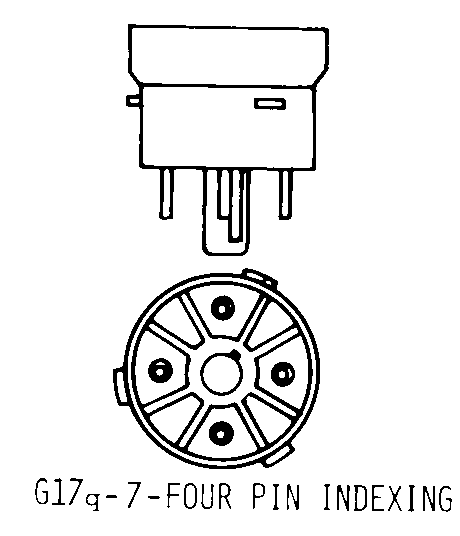

G17Q-7-FOUR PIN INDEXING
T (TUBULAR)
Cross Reference | NSN 6240-01-147-0379
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DAT/DAK | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
Technical Data | NSN 6240-01-147-0379
| Characteristic | Specifications |
|---|---|
| BASE STYLE | G17Q-7-FOUR PIN INDEXING |
| TERMINAL TYPE AND QUANTITY | 4 PIN |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-10 |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-13D |
| WATTAGE RATING | 400.000 WATTS |
| VOLTAGE RATING | 120.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.300 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 25.0 |
| BURNING POSITION | BASE DOWN |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| COLOR TEMP IN DEG KELVIN | 3200.0 |
| LIGHT CENTER LENGTH | 1.562 INCHES NOMINAL |
| FEATURES PROVIDED | FILAMENT SHIELDING AND HEAT RESISTANT GLASS |
