NSN 6240-01-186-9975
Part Details | INCANDESCENT LAMP
6240-01-186-9975 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 90400171, 904-00171, 901711, 901-71-1, 90400171, 6240-01-186-9975, 01-186-9975, 6240011869975, 011869975
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | AUG 17, 1984 | 01-186-9975 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

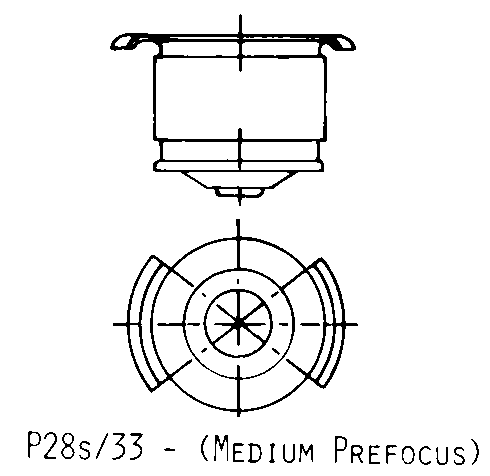

P28S/33 (Medium Prefocus)
T (TUBULAR)
Cross Reference | NSN 6240-01-186-9975
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 904-00171 | 61204 | GLAMOX AQUA SIGNAL CORPORATION |
| 901-71-1 | 61204 | GLAMOX AQUA SIGNAL CORPORATION |
| 90400171 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 6240-01-186-9975
| Characteristic | Specifications |
|---|---|
| BASE STYLE | P28S/33 (Medium Prefocus) |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-12 |
| OVERALL LENGTH | 108.0 MILLIMETERS MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| WATTAGE RATING | 40.000 WATTS |
| VOLTAGE RATING | 24.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 1.666 AMPERES NOMINAL |
| RATED AVERAGE LIFE | NOT RATED |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
