NSN 6240-01-331-0841
Part Details | INCANDESCENT LAMP
6240-01-331-0841 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: EKE, EKE, BLBEKE, 6240-01-331-0841, 01-331-0841, 6240013310841, 013310841
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | DEC 13, 1990 | 01-331-0841 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

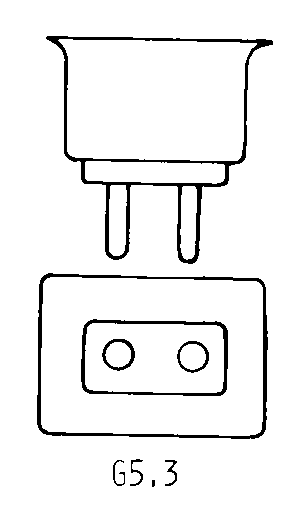

G5.3
B (ARBITRARY DESIGNATION)
Cross Reference | NSN 6240-01-331-0841
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EKE | 02580 | GENERAL ELECTRIC COLIGHTING SYSTEMS DEPT |
| EKE | 08807 | GENERAL ELECTRIC COPHOTO LAMP DEPT |
| BLBEKE | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 6240-01-331-0841
| Characteristic | Specifications |
|---|---|
| BASE STYLE | G5.3 |
| BULB STYLE | 4 B (ARBITRARY DESIGNATION) |
| OVERALL LENGTH | 1.750 INCHES MAXIMUM |
| FILAMENT DESIGNATION | CC-6 |
| WATTAGE RATING | 150.000 WATTS |
| VOLTAGE RATING | 21.000 VOLTS NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 200.0 |
| BURNING POSITION | BASE DOWN TO HORIZONTAL |
| COLOR TEMP IN DEG KELVIN | 3250.0 |
