NSN 6240-01-365-3711
Part Details | INCANDESCENT LAMP
6240-01-365-3711 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 67DP2CLR, 6240-01-365-3711, 01-365-3711, 6240013653711, 013653711
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | OCT 06, 1992 | 01-365-3711 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

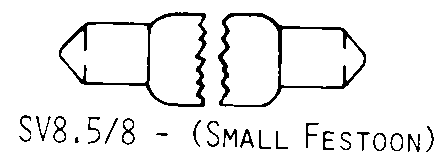

SV8.5/8 (Small Festoon)
Cross Reference | NSN 6240-01-365-3711
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 67DP2CLR | 46576 | PERKO INC |
Technical Data | NSN 6240-01-365-3711
| Characteristic | Specifications |
|---|---|
| BASE STYLE | SV8.5/8 (Small Festoon) |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| WATTAGE RATING | 18.000 WATTS |
| VOLTAGE RATING | 24.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.750 AMPERES NOMINAL |
| RATED AVERAGE LIFE | NOT RATED |
| BURNING POSITION | VERTICAL |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| END ITEM IDENTIFICATION | MAST,NAVIGATIONAL,P/N MLBS-1702-1-R ONBOARD 44 FT MLB COAST GUARD VESSELS |
