NSN 6240-01-373-2427
Part Details | INCANDESCENT LAMP
6240-01-373-2427 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 342AS15, CL70306, 26699005441, 266-990054-41, 7009AS15, 8552AS15, OL8552AS15, 2621500020, 262-1500-020, 2621500020, 262-1500-020, 0L8552AS15, 6240-01-373-2427, 01-373-2427, 6240013732427, 013732427
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | MAR 30, 1993 | 01-373-2427 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

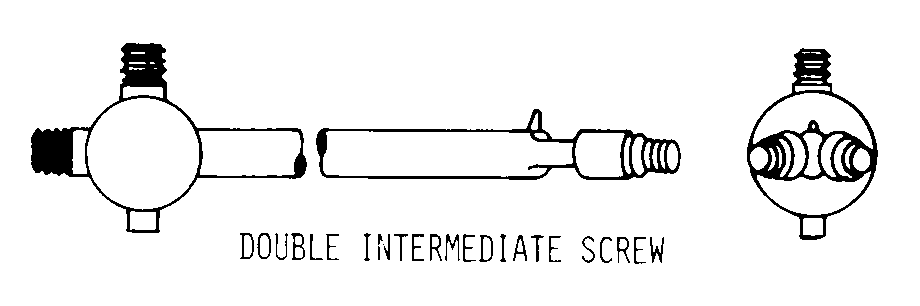

DOUBLE INTERMEDIATE SCREW
Cross Reference | NSN 6240-01-373-2427
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 342AS15 | 56665 | CARLEY INC. |
| CL70306 | 56665 | CARLEY INC. |
| 266-990054-41 | 90073 | CMC ELECTRONICS INC |
| 7009AS15 | 06097 | HOFFMAN ENGINEERING LLC |
| 8552AS15 | 08108 | LAMP INDUSTRYFOR USE WITH INDUSTRY |
| OL8552AS15 | S3774 | OSHINO LAMPS LTD. |
| 262-1500-020 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 262-1500-020 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
| 0L8552AS15 | 58774 | WAMCO, INC. |
Technical Data | NSN 6240-01-373-2427
| Characteristic | Specifications |
|---|---|
| BASE STYLE | DOUBLE INTERMEDIATE SCREW |
| WIRE LEAD LENGTH | 1.250 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 PIN |
| BULB DESIGNATOR | T-1 |
| OVERALL LENGTH | 0.145 INCHES MAXIMUM |
| VOLTAGE RATING | 28.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.020 AMPERES NOMINAL |
