NSN 6240-01-425-0606
Part Details | INCANDESCENT LAMP
6240-01-425-0606 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: TH2303082 PT2, TH23030-8-2 PT2, TH2303082, TH23030-8-2, 6240-01-425-0606, 01-425-0606, 6240014250606, 014250606
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | FEB 10, 1996 | 01-425-0606 | 00727 ( LAMP, INCANDESCENT ) |

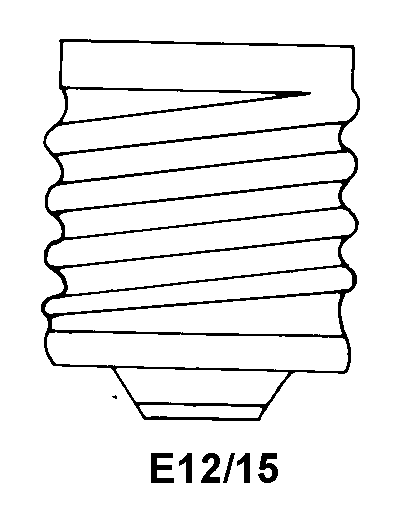

REFERENCE DRAWINGS & PICTURES
E12/15
Cross Reference | NSN 6240-01-425-0606
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TH23030-8-2 PT2 | 0YVP5 | FUJI TRADING AMERICA INC |
| TH23030-8-2 | S8172 | SHINKO IND. LTD |
Technical Data | NSN 6240-01-425-0606
| Characteristic | Specifications |
|---|---|
| BASE STYLE | E12/15 |
| OVERALL LENGTH | 33.000 MILLIMETERS NOMINAL |
| WATTAGE RATING | 2.000 WATTS |
| VOLTAGE RATING | 24.000 VOLTS NOMINAL |
| END ITEM IDENTIFICATION | STRATEGIC SEALIFT CONVERSION SHIPS CLASS |
