NSN 6250-01-374-5127
Part Details | LAMP CHANGER
6250-01-374-5127 An item consisting of two or more LAMPHOLDER, which in the event of a lamp failure, is designed to bring another lamp into operating position. It may be manually or automatically operated.
Alternate Parts: GECV472A, G-ECV-472A, GECV472A, G-ECV-472A, GECV472A, G-ECV-472A, GECV472A, G-ECV-472A, GECV472A, G-ECV-472A, 6250-01-374-5127, 01-374-5127, 6250013745127, 013745127
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | APR 23, 1993 | 01-374-5127 | 19195 ( LAMP CHANGER ) |
REFERENCE DRAWINGS & PICTURES

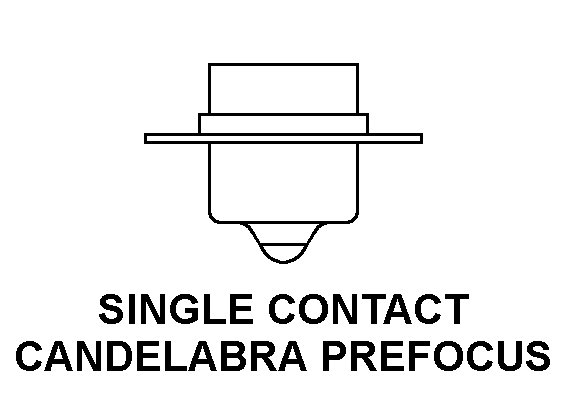

SINGLE CONTACT CANDELABRA PREFOCUS
Cross Reference | NSN 6250-01-374-5127
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G-ECV-472A | 56957 | AUTOMATED POWER SYSTEMS INC |
| G-ECV-472A | 59231 | C-R CONTROL SYSTEMS INC |
| G-ECV-472A | 2X523 | EC CORP THEELECTRONICS DIV |
| G-ECV-472A | 1DW95 | REMARQUE MANUFACTURING CORP |
| G-ECV-472A | 0R6M6 | UNITED STATES COAST GUARD HQOCEAN ENGINEERING BR G-ECV-3 |
Technical Data | NSN 6250-01-374-5127
| Characteristic | Specifications |
|---|---|
| LAMPHOLDER QUANTITY | 6 |
| LAMP BASE STYLE | SINGLE CONTACT CANDELABRA PREFOCUS |
| CURRENT TYPE | DC |
| VOLTAGE RATING | 12.0 VOLTS NOMINAL |
| ELECTRIC POWER RATING | 110.0 WATTS NOMINAL |
| MAXIMUM CURRENT RATING | 10.0 AMPERES |
| MOUNTING CONFIGURATION | FOUR 7/32 IN. DIA MTG HOLES |
| OPERATION METHOD | AUTOMATIC |
| CRITICALITY CODE JUSTIFICATION | AMSE |
