NSN 6515-00-350-9600
Part Details | SUTURE NEEDLE
6515-00-350-9600 A surgical item designed for use with a suture to transfix and stitch tissue of wounds and blood vessels.
Alternate Parts: 1827 1 34, 1827 1 3/4, 1827, GGN211, 6515-00-350-9600, 00-350-9600, 6515003509600, 003509600
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | JAN 01, 1963 | 00-350-9600 | 07251 ( NEEDLE, SUTURE ) |
REFERENCE DRAWINGS & PICTURES

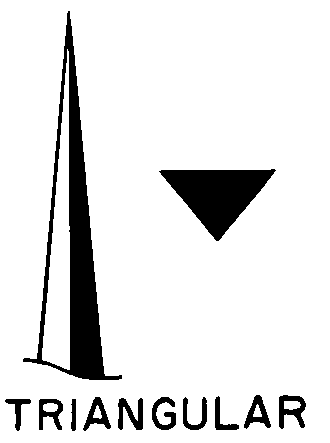

TRIANGULAR
REGULAR ROUND EYE

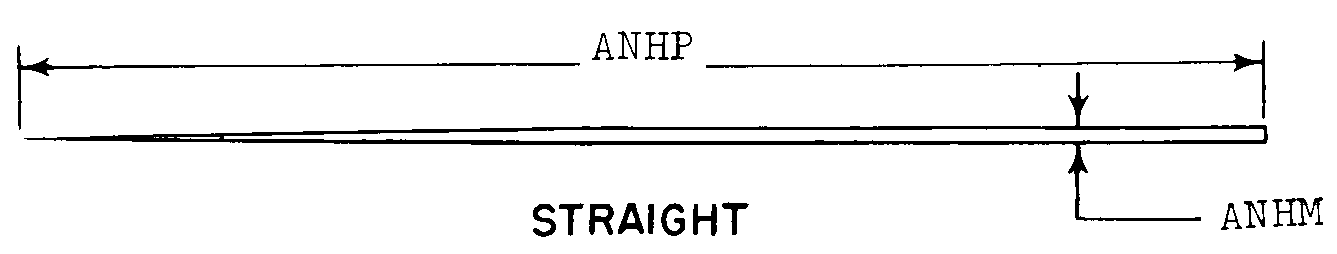

STRAIGHT
Cross Reference | NSN 6515-00-350-9600
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1827 1 3/4 | 18521 | ANCHOR PRODUCTS COMPANY |
| 1827 | 18521 | ANCHOR PRODUCTS COMPANY |
| GGN211 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 6515-00-350-9600
| Characteristic | Specifications |
|---|---|
| NEEDLE DESIGN DESIGNATION | KEITH ABDOMINAL |
| STYLE DESIGNATOR | STRAIGHT |
| NEEDLE NOMINAL DIAMETER | 0.035 INCHES |
| NEEDLE NOMINAL LENGTH | 1.750 INCHES |
| POINT STYLE | TRIANGULAR |
| EYE STYLE | REGULAR ROUND EYE |
| SURFACE TREATMENT AND LOCATION | PASSIVATED OVERALL |
| STERILITY | NONSTERILE |
| UNIT PACKAGE QUANTITY | 6 |
| NONDEFINITIVE SPEC/STD DATA | D CLASS AND 9 TYPE |
| UNIT OF ISSUE CUBE | 0.001 CUBIC FEET |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | NEEDLE SUTURE KEITH ABDOMINAL B5 STRAIGHT 1.75"LG 0.35"DIA 6S |
