NSN 6515-00-352-2300
Part Details | SUTURE NEEDLE
6515-00-352-2300 A surgical item designed for use with a suture to transfix and stitch tissue of wounds and blood vessels.
Alternate Parts: 18200, 1820-0, GGN211, 6515-00-352-2300, 00-352-2300, 6515003522300, 003522300
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | JAN 01, 1963 | 00-352-2300 | 07251 ( NEEDLE, SUTURE ) |

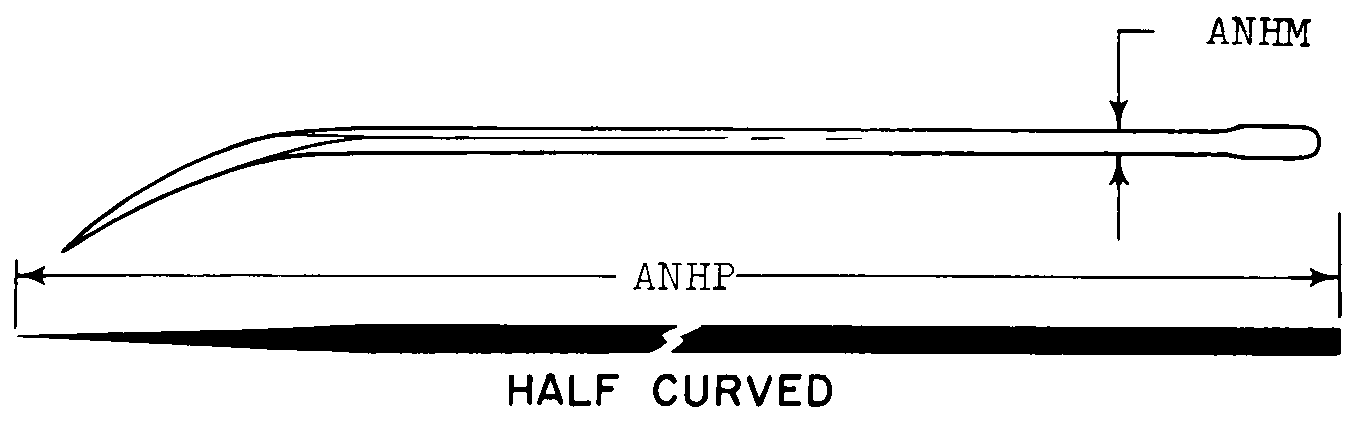

REFERENCE DRAWINGS & PICTURES
REGULAR CUTTING EDGE
REGULAR ROUND EYE
HALF CURVED
Cross Reference | NSN 6515-00-352-2300
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1820-0 | 18521 | ANCHOR PRODUCTS COMPANY |
| GGN211 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 6515-00-352-2300
| Characteristic | Specifications |
|---|---|
| NEEDLE DESIGN DESIGNATION | POST MORTEM |
| STYLE DESIGNATOR | HALF CURVED |
| NEEDLE NOMINAL DIAMETER | 0.076 INCHES |
| NEEDLE NOMINAL LENGTH | 5.000 INCHES |
| POINT STYLE | REGULAR CUTTING EDGE |
| EYE STYLE | REGULAR ROUND EYE |
| SURFACE TREATMENT AND LOCATION | PASSIVATED OVERALL |
| STERILITY | NONSTERILE |
| UNIT PACKAGE QUANTITY | 6 |
| SPECIAL FEATURES | D-DAY ITEM FOR D0D |
| NONDEFINITIVE SPEC/STD DATA | C CLASS AND 11 TYPE |
| UNIT OF ISSUE CUBE | 0.002 CUBIC FEET |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | NEEDLE SUTURE POST MORTEM B6 HALF CURVED 5" LG 0.076" DIA 6S |
