NSN 6515-00-360-6100
Part Details | BRAIN RETRACTOR SET
6515-00-360-6100
Alternate Parts: G5158, 6515-00-360-6100, 00-360-6100, 6515003606100, 003606100
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | JAN 01, 1963 | 00-360-6100 | 13907 ( RETRACTOR SET, BRAIN ) |

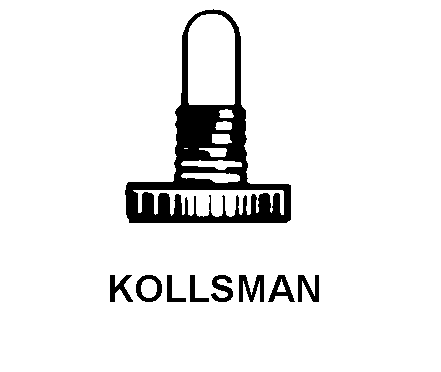

REFERENCE DRAWINGS & PICTURES
KOLLSMAN
Cross Reference | NSN 6515-00-360-6100
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G5158 | 26367 | GRIESHABER MFG CO INC |
Technical Data | NSN 6515-00-360-6100
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | FRAZIER |
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | CHROMIUM AND NICKEL |
| UNIT QUANTITY PER SET | 3 |
| ILLUMINATED FEATURE | INCLUDED |
| LAMP QUANTITY | 3 |
| LAMP VOLTAGE RATING IN VOLTS | 2.0 |
| LAMP CURRENT RATING | 0.4 AMPERES |
| LAMP BULB SIZE DESIGNATOR | T11 |
| LAMP BASE STYLE | 9 KOLLSMAN |
| LAMP TRANSPARENCY | B ANY ACCEPTABLE |
| BATTERY CORD | INCLUDED |
| CORD QUANTITY | 2 |
| CARRYING CASE | PROVIDED |
| FURNISHED ITEMS AND QUANTITY | LAMPS,3 |
| SPECIAL FEATURES | IN CASE; FOR REPLACEMENT LAMP,ORDER 6240-00-797-2565; USED WITH ELECTRODIAGNOSTIC INSTRUMENTS POWER SUPPLY,6515-00-579-2539,AND 6515-00-579-2367 |
