NSN 6515-00-926-9192
Part Details | SURGICAL ABSORBABLE SUTURE
6515-00-926-9192 An item designed for stitching and thus securing tissues. It is designed of a material which will be dissolved and absorbed in such tissues.
Alternate Parts: 8303785, 1792G, GGS00812, 1792G, 6515-00-926-9192, 00-926-9192, 6515009269192, 009269192
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | FEB 03, 1967 | 00-926-9192 | 12953 ( SUTURE, ABSORBABLE, SURGICAL ) |
REFERENCE DRAWINGS & PICTURES

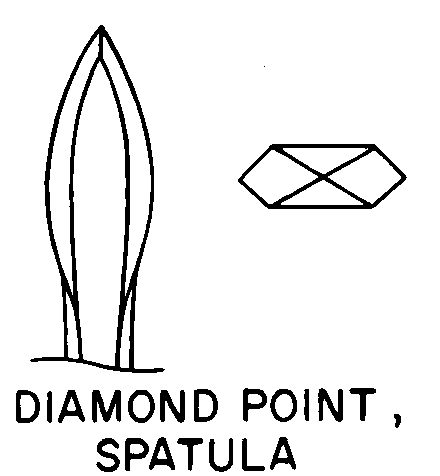

DIAMOND POINT, SPATULA

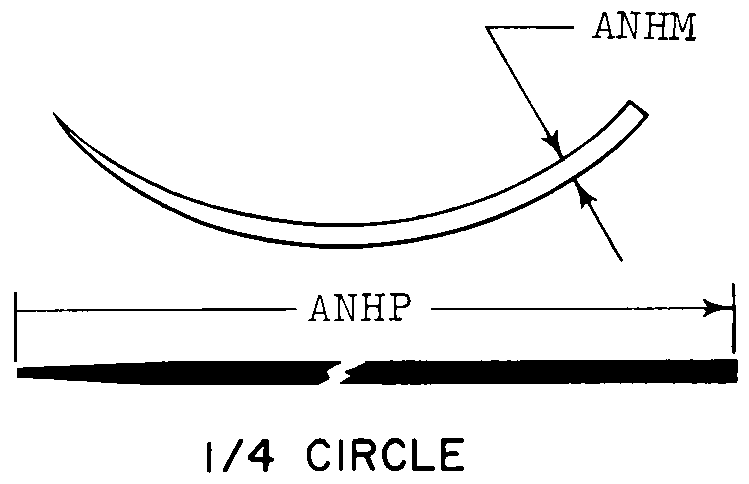

1/4 CIRCLE
Cross Reference | NSN 6515-00-926-9192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8303785 | ZBF76 | ANSPEC PTY LTD |
| 1792G | 10614 | ETHICON, INC |
| GGS00812 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 1792G | Z1612 | JOHNSON & JOHNSON MEDICALPTY LTD |
Technical Data | NSN 6515-00-926-9192
| Characteristic | Specifications |
|---|---|
| COLOR | NATURAL |
| LENGTH | 1.500 FEET NOMINAL |
| STRAND FIBER ARRANGEMENT | TWISTED |
| STERILITY | STERILE |
| END TYPE | DOUBLE ARMED |
| ARMED SUTURE NEEDLE STYLE | 1/4 CIRCLE |
| ARMED SUTURE NEEDLE POINT STYLE | DIAMOND POINT, SPATULA |
| NEEDLE NOMINAL DIAMETER | 0.013 INCHES |
| NEEDLE NOMINAL LENGTH | 0.312 INCHES |
| SURFACE TREATMENT AND LOCATION | CHROMIUM SALT SUTURE |
| SIZE DESIGNATOR | 5-0 |
| DIAMETER | 0.153 MILLIMETERS NOMINAL |
| IMMEDIATE CONTAINER TYPE | PACKET, FOIL, SEALED |
| IMMEDIATE CONTAINER QUANTITY | 12 |
| QUANTITY WITHIN EACH IMMEDIATE CONTAINER | 1 |
| UNIT PACKAGE QUANTITY | 12 |
| SPECIAL FEATURES | TREATED; INDIVIDUALLY SEALED; SIDE CUTTING EDGE; FOR OPTHALMIC SURGERY |
| NONDEFINITIVE SPEC/STD DATA | 3 CLASS AND B TYPE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY ARMED SUTURE NEEDLE STYLE AND ARMED SUTURE NEEDLE POINT STYLE |
| UNIT OF ISSUE CUBE | 0.017 CUBIC FEET |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SUTURE ABS OPHTH GUT SZ 5-0 1.50' L B1 1/4 CIR DIAMOND PT S-14 S-14 12S |
