NSN 6515-00-935-1086
Part Details | PERITONEAL DIALYSIS CATHETER
6515-00-935-1086 A component of an ADMINSTRATION SET, PERITONEAL DIALYSIS, which is inserted into the peritoneal cavity either by use of a trocar and cannula or through a surgical incision.
Alternate Parts: 4711, 4711, 4629, 6515-00-935-1086, 00-935-1086, 6515009351086, 009351086
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | OCT 11, 1967 | 00-935-1086 | 29398 ( CATHETER, PERITONEAL DIALYSIS ) |

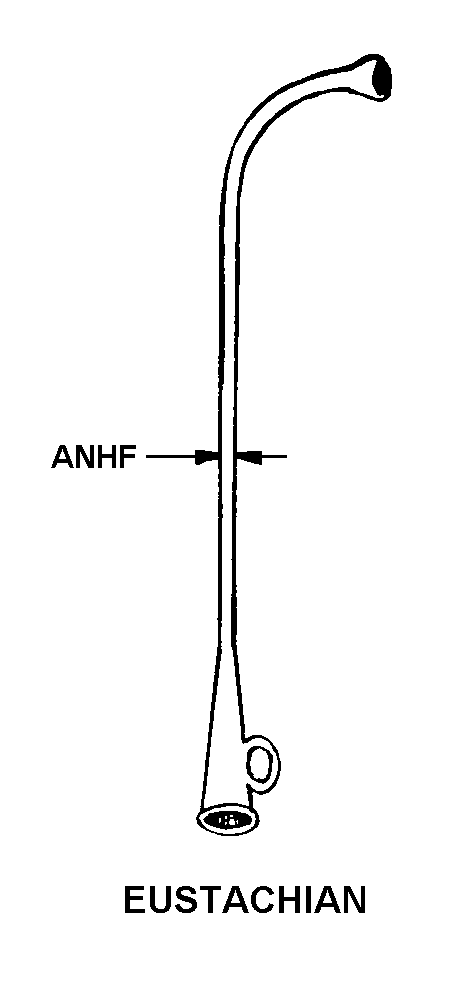

REFERENCE DRAWINGS & PICTURES
EUSTACHIAN
Cross Reference | NSN 6515-00-935-1086
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4711 | 60060 | ABBOTT LABORATORIES INC.DIV HOSPITAL PRODUCTS DIVISION |
| 4711 | 70048 | ABBOTT LABORATORIESPHARMACEUTICAL PRODUCTS DIV |
| 4629 | 70048 | ABBOTT LABORATORIESPHARMACEUTICAL PRODUCTS DIV |
Technical Data | NSN 6515-00-935-1086
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | PERITONEAL |
| STYLE DESIGNATOR | 1 EUSTACHIAN |
| NOMINAL DIAMETER | 11.000 FRENCH |
| MATERIAL AND LOCATION | PLASTIC OVERALL |
| SHAFT EYE QUANTITY | 100 |
| TIP TYPE | OPEN END |
| CORE FABRICATION METHOD | NOT WOVEN |
| PATIENT SIZE DESIGNATION | ADULT |
| FEATURES PROVIDED | STERILE AND DISPOSABLE AND STYLET |
| SPECIAL FEATURES | WITH FINGER RING OR LOOP ON PROXIMAL,STYLET RETAINER,AND CONNECTOR WITH LUER ADAPTERS FOR ATTACHING TO ADMINISTRATION SET; CORROSION RESISTING STEEL STYLET,11 IN. LONG WITH THREE-SIDED BEVEL POINT ON DISTAL END; INDIVIDUALLY SEALED |
