NSN 6515-01-130-2012
Part Details | POWER BONE SAW BLADE
6515-01-130-2012 A thin configurated strip of steel with a continuous series of cutting teeth along one edge. Designed for all methods of power operations and longitudinal hip and tibial osteomies, including small and large bone orthopedic procedures. Excludes BLADE, BONE SAW, PNEUMATIC.
Alternate Parts: 1002100, 6515-01-130-2012, 01-130-2012, 6515011302012, 011302012
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | APR 17, 1982 | 01-130-2012 | 38138 ( BLADE, BONE SAW, POWER ) |

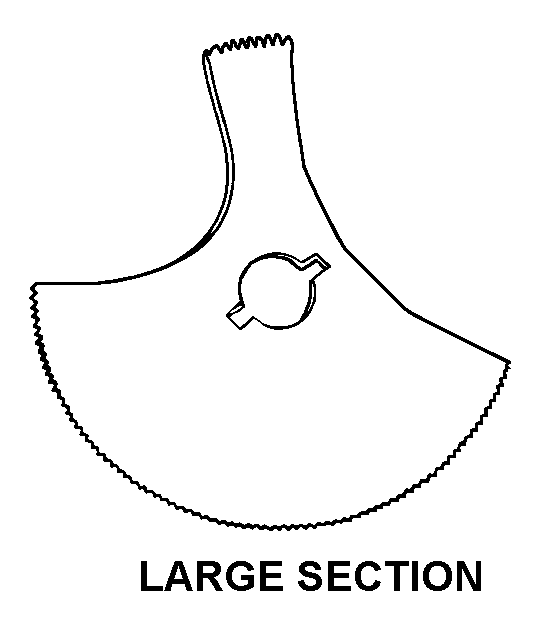

REFERENCE DRAWINGS & PICTURES
LARGE SECTION
Cross Reference | NSN 6515-01-130-2012
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1002100 | 17602 | THERMO SHANDON INCDBA SHANDON INC DIV ANATOMICAL |
Technical Data | NSN 6515-01-130-2012
| Characteristic | Specifications |
|---|---|
| SPECIFIC USE | BONE CUTTING |
| MATERIAL AND LOCATION | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT AND LOCATION | ANY ACCEPTABLE BLADE |
| STYLE DESIGNATOR | LARGE SECTION |
| SPECIAL FEATURES | LARGE SECTIONED BLADE; FOR GENERAL PURPOSE; REMOVAL OF SKULL CAP OR BONE SPECIMENS |
