NSN 6515-01-139-7914
Part Details | POWER BONE SAW BLADE
6515-01-139-7914 A thin configurated strip of steel with a continuous series of cutting teeth along one edge. Designed for all methods of power operations and longitudinal hip and tibial osteomies, including small and large bone orthopedic procedures. Excludes BLADE, BONE SAW, PNEUMATIC.
Alternate Parts: 505250, 5052-50, ORTHAIR, 6515-01-139-7914, 01-139-7914, 6515011397914, 011397914
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | OCT 07, 1982 | 01-139-7914 | 38138 ( BLADE, BONE SAW, POWER ) |

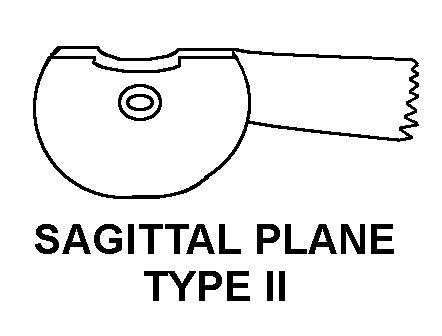

REFERENCE DRAWINGS & PICTURES
SAGITTAL PLANE TYPE II
Cross Reference | NSN 6515-01-139-7914
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5052-50 | 67239 | ZIMMER, INC.DBA Z HOTEL |
| ORTHAIR | 67239 | ZIMMER, INC.DBA Z HOTEL |
Technical Data | NSN 6515-01-139-7914
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT AND LOCATION | ANY ACCEPTABLE OVERALL |
| STYLE DESIGNATOR | 1 SAGITTAL PLANE TYPE II |
| DESIGN FORM | EH ANY ACCEPTABLE |
| BLADE TYPE | OSCILLATING |
| BLADE LENGTH | 121.0 MILLIMETERS NOMINAL |
| BLADE WIDTH | 51.0 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | STERILE; DISPOSABLE; 5.1 CM BLALADE WIDTH; 6.35 CM MAX CUTTING DEPTH; 0.6 MM THICKNESS; 7 TEETH PER CM; FOR USE ASS AN OSCILLATING BLADE |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | BLADE BONE SAW POWER A21 OSCILLATING CUTAWAY 51MM W ONE-PIECE SS |
