NSN 6515-01-139-7937
Part Details | PNEUMATIC BONE SAW BLADE
6515-01-139-7937 A sterile, disposable item with a continuous series of cutting teeth along one edge. It is designed for use in small bone orthopedics, bone grafts, podiatry, surgical procedures, oral, maxillofacial surgery, and other related procedures. Excludes BLADE, BONE SAW, POWER.
Alternate Parts: 505335, 5053-35, 6515-01-139-7937, 01-139-7937, 6515011397937, 011397937
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | OCT 07, 1982 | 01-139-7937 | 46143 ( BLADE, BONE SAW, PNEUMATIC ) |
REFERENCE DRAWINGS & PICTURES

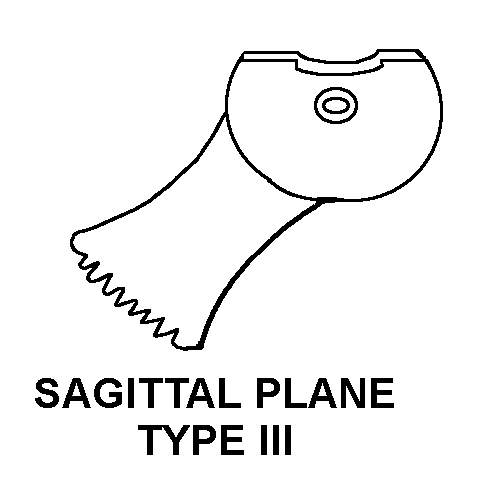

SAGITTAL PLANE TYPE III
Cross Reference | NSN 6515-01-139-7937
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5053-35 | 15904 | LINVATEC CORPORATIONDBA CONMED LINVATEC |
Technical Data | NSN 6515-01-139-7937
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT AND LOCATION | ANY ACCEPTABLE OVERALL |
| STYLE DESIGNATOR | SAGITTAL PLANE TYPE III |
| BLADE THICKNESS | 0.6 MILLIMETERS NOMINAL |
| BLADE LENGTH | 18.0 MILLIMETERS NOMINAL |
| BLADE WIDTH | 0.55 MILLIMETERS NOMINAL |
| TEETH QUANTITY | 7 |
| SPECIAL FEATURES | USED IN MULTIPLE SPECIALTY SURGERY;SUCH AS ORAL;ORTHOPEDIC;PODIATRY;SHARP BLADE TYPE |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | BLADE BONE SAW PNEUMATIC A3 SAGGITAL PLANE TYPE III 18X.55X.6MM |
