NSN 6515-01-153-5098
Part Details | BONE SCREW
6515-01-153-5098 A cylindrical rod incised with one or more helical or advancing spiral threads with smooth surfaces free from nicks, dents, burrs, and scratches suitable for use in orthopedic surgery and fabricated from implant-quality corrosion resisting material which is inert and biocompatible with human bones, tissues and internal chemistry.
Alternate Parts: 215.040, 215.040, 215.040, 6515-01-153-5098, 01-153-5098, 6515011535098, 011535098
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | MAY 15, 1983 | 01-153-5098 | 06669 ( SCREW, BONE ) |
REFERENCE DRAWINGS & PICTURES

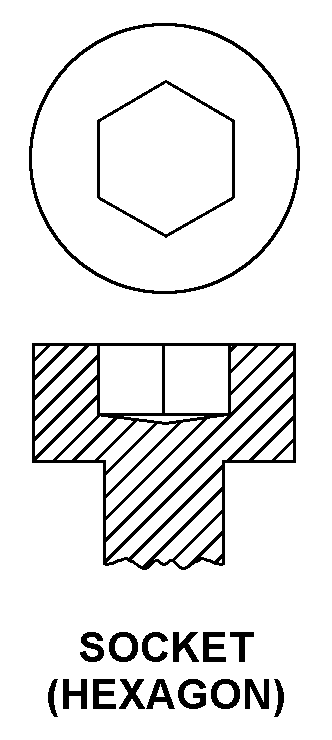

SOCKET
Cross Reference | NSN 6515-01-153-5098
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 215.040 | F8642 | DEPUY FRANCE |
| 215.040 | 63075 | DEPUY SYNTHES SALES INCDBA DEPUY SYNTHES TRAUMA |
| 215.040 | FAS37 | SYNTHES |
Technical Data | NSN 6515-01-153-5098
| Characteristic | Specifications |
|---|---|
| OUTSIDE THREAD DIAMETER | 4.5 MILLIMETERS NOMINAL |
| THREAD LENGTH | 20.0 MILLIMETERS |
| LENGTH | 40.0 MILLIMETERS NOMINAL |
| RECESSED DRIVE STYLE | SOCKET |
| SPECIAL FEATURES | MALLEOLAR TYPE; 3.0MM DIA CORE; 3.0MM DIA SHAFT; 8.0MM DIA HEAD; SPHERICAL HEAD; FOR USE WITH SMALL BONE FRAGMENT SET,6515-01-173-7027 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SCREW BONE MALLEOLAR TYPE 40MM LG 4.5MM DIA SPHERICAL HEAD |
