NSN 6515-01-153-5659
Part Details | BONE SCREW
6515-01-153-5659 A cylindrical rod incised with one or more helical or advancing spiral threads with smooth surfaces free from nicks, dents, burrs, and scratches suitable for use in orthopedic surgery and fabricated from implant-quality corrosion resisting material which is inert and biocompatible with human bones, tissues and internal chemistry.
Alternate Parts: 20624, 206-24, 6515-01-153-5659, 01-153-5659, 6515011535659, 011535659
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | MAY 15, 1983 | 01-153-5659 | 06669 ( SCREW, BONE ) |
REFERENCE DRAWINGS & PICTURES

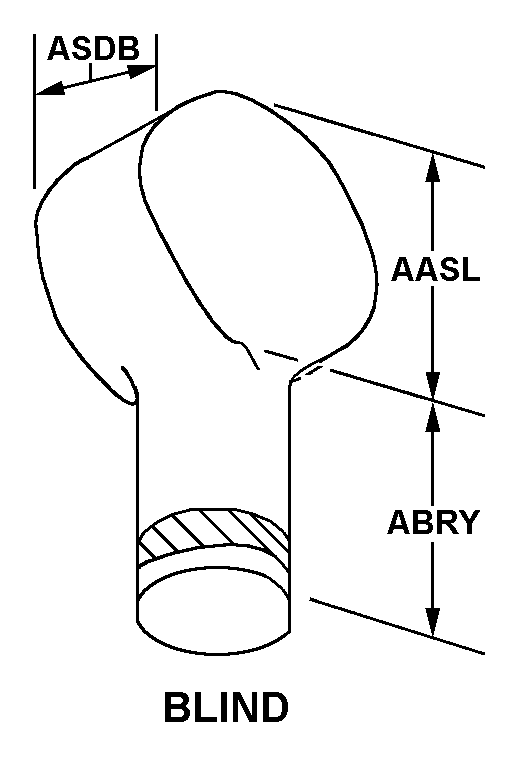

BLIND
SOCKET
Cross Reference | NSN 6515-01-153-5659
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 206-24 | 63075 | DEPUY SYNTHES SALES INCDBA DEPUY SYNTHES TRAUMA |
Technical Data | NSN 6515-01-153-5659
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| OUTSIDE THREAD DIAMETER | 3.5 MILLIMETERS NOMINAL |
| MATERIAL AND LOCATION | STEEL, CORROSION RESISTING OVERALL |
| HEAD STYLE | 5 BLIND |
| HEAD LENGTH | 6.0 MILLIMETERS NOMINAL |
| LENGTH | 24.0 MILLIMETERS NOMINAL |
| RECESSED DRIVE STYLE | SOCKET |
| SPECIAL FEATURES | MATERIAL IN ACCORDANCE WITH ASTM F138 OR F139 AS APPLICABLE |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SCREW BONE RIGHT-HAND 24MMLG 3.5MM DIA B35 FILLISTER COUNTERSUNK |
