NSN 6520-01-417-6151
Part Details | SHARPENING STONE
6520-01-417-6151 A piece of abrasive of any shape designed to be held in the hand or to remain stationary while the item to be sharpened is moved against it or the piece of abrasive is moved against the item.
Alternate Parts: 950356, 95-0356, 61463687160, 87160 (5S), 6520-01-417-6151, 01-417-6151, 6520014176151, 014176151
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | AUG 10, 1995 | 01-417-6151 | 02606 ( STONE, SHARPENING ) |

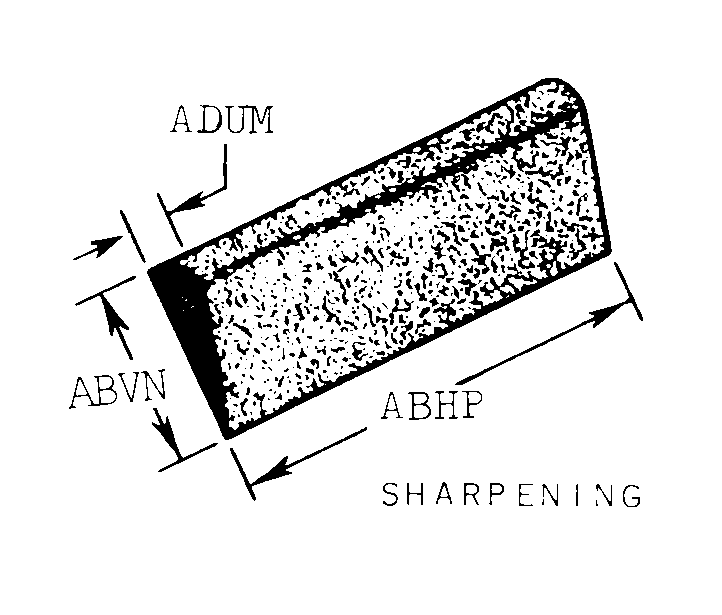

REFERENCE DRAWINGS & PICTURES
SHARPENING
Cross Reference | NSN 6520-01-417-6151
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 95-0356 | 89875 | DEFENSE LOGISTICS AGENCYDIRECTORATE OF MEDICAL MATERIEL |
| 61463687160 | 89201 | NORTON CONORTON-PIKE PLANT |
| 87160 (5S) | 44197 | SAINT-GOBAIN ABRASIVES INC |
Technical Data | NSN 6520-01-417-6151
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | ALUMINUM OXIDE |
| FLINT/EMERY SIMPLIFIED GRADE DESIGNATOR | FINE |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| STONE STYLE | SHARPENING |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| OVERALL THICKNESS | 0.375 INCHES NOMINAL |
| THIN EDGE THICKNESS | 0.125 INCHES NOMINAL |
| OIL IMPREGNATION FEATURE | NOT INCLUDED |
| CASE MOUNTED | NOT INCLUDED |
| SPECIAL FEATURES | FINE INDIA; ALUMINUM OXIDE; ROUND EDGE; SLIP STYLE; 4-1/2 X 1-3/4 X 3/8 X 1/8 IN.; DESIGNED TO BE HELD IN THE HAND OR TO REMAIN STATIONARY WHILE ITEM TO BE SHARPENED IS MOVED AGAINST IT; MIN. PKG OF 5 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | STONE SHARPENING ALUMINUM OXIDE 4.5IN O/A LG FINE INDIA 5S |
