NSN 6625-00-079-6113

Part Details | VOLTMETER

6625-00-079-6113 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.

Alternate Parts: 89911462REVD, 8991146-2REVD, 89911462, 8991146-2, 77756, 777-56, MK77756, MK777-56, 10014194, 10-014194, 6625-00-079-6113, 00-079-6113, 6625000796113, 000796113

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
66JAN 01, 196300-079-611316449 ( VOLTMETER )

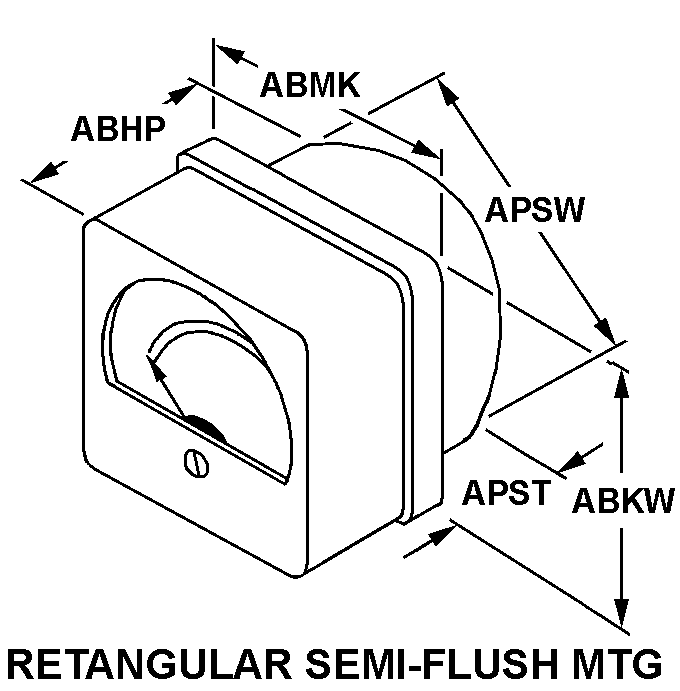

REFERENCE DRAWINGS & PICTURES

FOUR HOLE/STUD RECTANGULAR/SQUARE

RECTANGULAR SEMI-FLUSH MTG

Cross Reference | NSN 6625-00-079-6113
Part Number Cage Code Manufacturer
8991146-2REVD02769LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN
8991146-202769LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN
777-560BZM1MKC ELECTRONICS, INCDBA MK ELECTRONICS
MK777-560BZM1MKC ELECTRONICS, INCDBA MK ELECTRONICS
10-01419477221PHAOSTRON INSTRUMENT AND ELECTRONICCOMPANY
Technical Data | NSN 6625-00-079-6113
Characteristic Specifications
INSTALLATION DESIGN PANEL
MOVEMENT TYPE MOVING IRON VANE
MOVEMENT SUSPENSION METHOD JEWEL PIVOT BASE
CIRCUIT ATTACHMENT METHOD AND QUANTITY2 SOLDER STUD
CIRCUIT CURRENT FOR WHICH DESIGNED AC
STYLE DESIGNATOR RECTANGULAR SEMI-FLUSH MTG
METER BODY DIAMETER BEHIND MOUNTING FLANGE1.510 INCHES NOMINAL
METER DEPTH BEHIND MOUNTING FLANGE1.000 INCHES NOMINAL
OVERALL HEIGHT1.750 INCHES NOMINAL
OVERALL LENGTH1.625 INCHES NOMINAL
OVERALL WIDTH1.750 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY4 THREADED STUD
MOUNTING STUD DIAMETER0.112 INCHES NOMINAL
MOUNTING STUD LENGTH0.375 INCHES NOMINAL
MOUNTING ARRANGEMENT STYLE FOUR HOLE/STUD RECTANGULAR/SQUARE
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH1.312 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH1.312 INCHES NOMINAL
