NSN 6625-00-106-0648

Part Details | AMMETER

6625-00-106-0648 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.

Alternate Parts: 9223301, 922330-1, 3073002, 3073-002, 3073002, 3073-002, 6625-00-106-0648, 00-106-0648, 6625001060648, 001060648

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
66JUL 10, 196800-106-064816450 ( AMMETER )
REFERENCE DRAWINGS & PICTURES

TWO HOLE/STUD

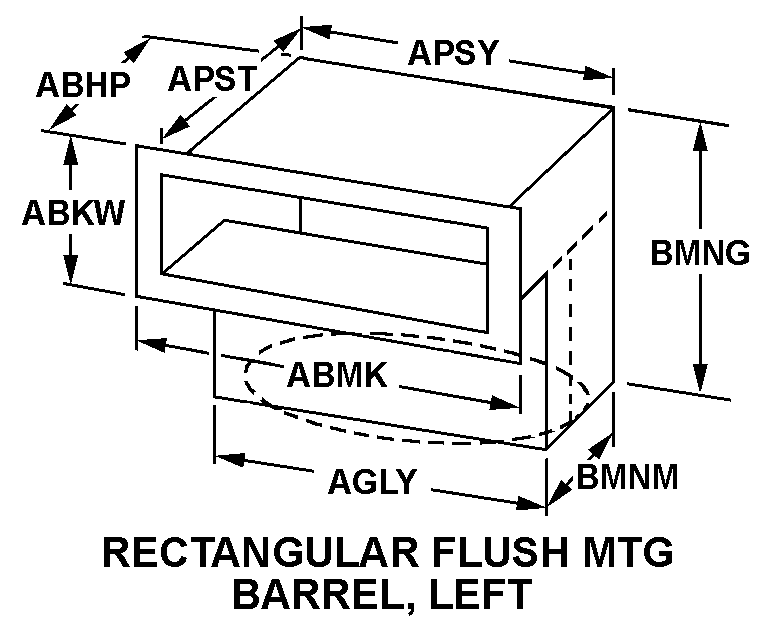

RECTANGULAR FLUSH MTG BARREL, LEFT

Cross Reference | NSN 6625-00-106-0648
Part Number Cage Code Manufacturer
922330-106481NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS
3073-00281030PRIME TECHNOLOGY INCINTERNATIONAL INSTRUMENTS DIV
3073-0020BHF9PRIME TECHNOLOGY, LLC
Technical Data | NSN 6625-00-106-0648
Characteristic Specifications
INSTALLATION DESIGN PANEL
INDICATOR TYPE DIAL W/POINTER
MOVEMENT TYPE MOVING COIL, PERMANENT MAGNET
MOVEMENT SUSPENSION METHOD JEWEL PIVOT BASE
CIRCUIT ATTACHMENT METHOD AND QUANTITY2 BINDING POST
DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS500.0
CIRCUIT CURRENT FOR WHICH DESIGNED DC
STYLE DESIGNATOR RECTANGULAR FLUSH MTG BARREL, LEFT
BARREL WIDTH2.578 INCHES NOMINAL
METER BARREL DEPTH2.156 INCHES NOMINAL
METER BODY HEIGHT BEHIND MOUNTING FLANGE1.296 INCHES NOMINAL
METER BODY WIDTH BEHIND MOUNTING FLANGE2.578 INCHES NOMINAL
METER DEPTH BEHIND MOUNTING FLANGE3.234 INCHES NOMINAL
OVERALL HEIGHT0.765 INCHES NOMINAL
OVERALL LENGTH3.671 INCHES NOMINAL
OVERALL WIDTH3.062 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY2 FLANGE
MOUNTING ARRANGEMENT STYLE TWO HOLE/STUD
DISTANCE BETWEEN MOUNTING FACILITY CENTERS2.187 INCHES NOMINAL
PANEL FOR WHICH DESIGNED NONMAGNETIC
CIRCUIT CONSTRUCTION TYPE NONELECTRONIC
MATERIAL STEEL
NUCLEAR HARDNESS CRITICAL FEATURE NONHARDENED
FEATURES PROVIDED ZERO ADJUSTER
