NSN 6625-00-119-8436
Part Details | AMMETER
6625-00-119-8436 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Alternate Parts: 5578801, 557880-1, 6625-00-119-8436, 00-119-8436, 6625001198436, 001198436
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | OCT 18, 1968 | 00-119-8436 | 16450 ( AMMETER ) |
REFERENCE DRAWINGS & PICTURES

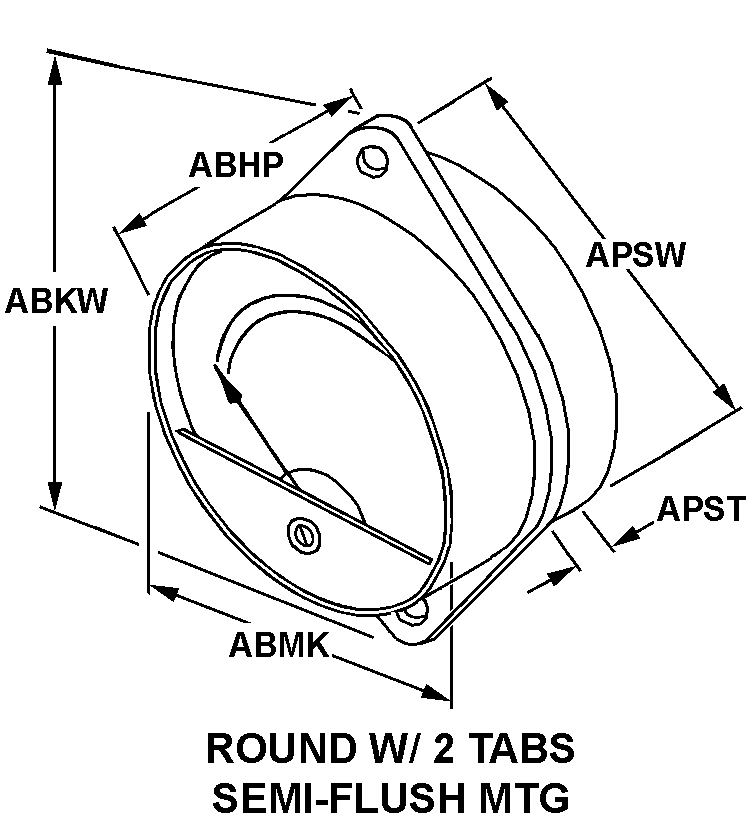

ROUND W/2 TABS SEMI-FLUSH MTG
Cross Reference | NSN 6625-00-119-8436
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 557880-1 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 6625-00-119-8436
| Characteristic | Specifications |
|---|---|
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | ROUND W/2 TABS SEMI-FLUSH MTG |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.470 INCHES NOMINAL |
| SUPPLEMENTARY FEATURES | WILL WITHSTAND WATER IMMERSION DEPTH OF 3 FT. FOR 10 HRS WITH NO LEAKAGE |
