NSN 6625-00-500-1332

Part Details | AMMETER

6625-00-500-1332 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.

Alternate Parts: MMI9875, MMI-9875, MMI9875, MMI-9875, ST1231, 271, 6625-00-500-1332, 00-500-1332, 6625005001332, 005001332

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
66JAN 01, 196300-500-133216450 ( AMMETER )
REFERENCE DRAWINGS & PICTURES

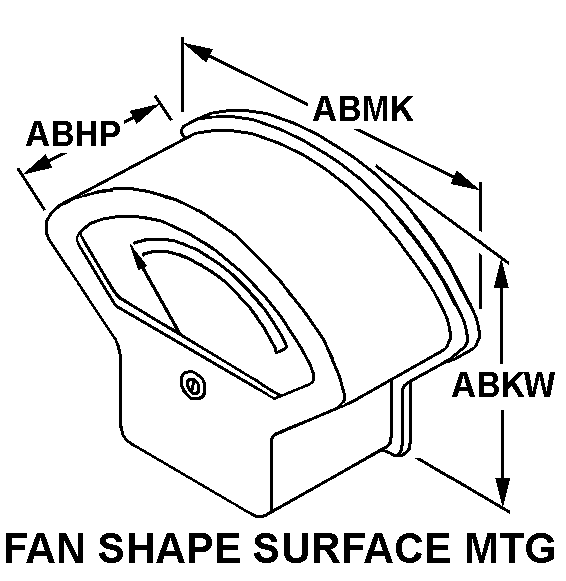

FAN SHAPE SURFACE MTG

Cross Reference | NSN 6625-00-500-1332
Part Number Cage Code Manufacturer
MMI-987528304CUSTOM METERING COMPANY INC
MMI-987527197METERMASTER INCMETERMOD DIV
ST123123667SMITHS DETECTION, INC.DIV EDGEWOOD
27165092SOLARTRON ELECTRONICS INCWESTON INSTRUMENTS DIV
Technical Data | NSN 6625-00-500-1332
Characteristic Specifications
INSTALLATION DESIGN PANEL
INDICATOR TYPE DIAL W/POINTER
MOVEMENT TYPE MOVING COIL, PERMANENT MAGNET
MOVEMENT SUSPENSION METHOD JEWEL PIVOT BASE
CIRCUIT ATTACHMENT METHOD AND QUANTITY2 THREADED STUD
POWER SOURCE EXTERNAL
CIRCUIT CURRENT FOR WHICH DESIGNED DC
STYLE DESIGNATOR FAN SHAPE SURFACE MTG
OVERALL HEIGHT6.250 INCHES NOMINAL
OVERALL LENGTH3.250 INCHES NOMINAL
OVERALL WIDTH7.875 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY4 SCREW AND 4 UNTHREADED HOLE
MOUNTING HOLE DIAMETER0.484 INCHES NOMINAL
PANEL FOR WHICH DESIGNED NONMAGNETIC
CIRCUIT CONSTRUCTION TYPE NONELECTRONIC
MATERIAL STEEL
NUCLEAR HARDNESS CRITICAL FEATURE NONHARDENED
ENVIRONMENTAL PROTECTION SHOCK RESISTANT AND VIBRATION RESISTANT
FURNISHED ITEMS AND QUANTITYNUT 2; WASHER 2
FEATURES PROVIDED ZERO ADJUSTER
SPECIAL FEATURESRUGGEDIZED
FSC APPLICATION DATATEST SET,ELECT. EQUIP.
