NSN 6640-00-191-6502
Part Details | TEST TUBE
6640-00-191-6502 A straight wall vessel with a flat or a round bottom for use in various laboratory procedures. It may have a side arm and a mouth designed to accommodate a stopper or a screw cap. Do not use if a more specific name is available.
Alternate Parts: T136813A, T1368-13A, T136813, T1368-13, 352027, 2027, 352027, T136813A, T1368-13A, T136813, T1368-13, FALCON, B25756, 1495938C, 14-959-38C, 9217G15, 6640-00-191-6502, 00-191-6502, 6640001916502, 001916502
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | MAR 09, 1970 | 00-191-6502 | 18770 ( TEST TUBE ) |

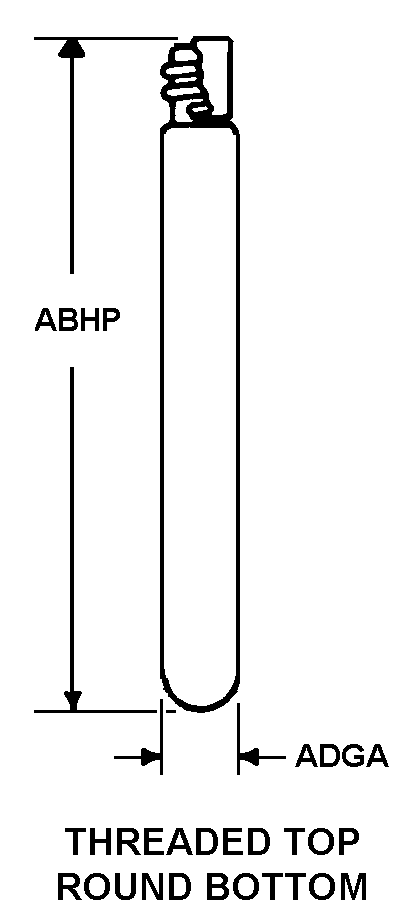

REFERENCE DRAWINGS & PICTURES
THREADED TOP ROUND BOTTOM
Cross Reference | NSN 6640-00-191-6502
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T1368-13A | 22353 | BAXTER HEALTHCARE CORPBAXTER SCIENTIFIC PRODUCTS DIV |
| T1368-13 | 22353 | BAXTER HEALTHCARE CORPBAXTER SCIENTIFIC PRODUCTS DIV |
| 352027 | 11712 | BECTON DICKINSON LABWAREDIV OF BECTON DICKINSON AND CO |
| 2027 | 11712 | BECTON DICKINSON LABWAREDIV OF BECTON DICKINSON AND CO |
| 352027 | 06531 | BECTON, DICKINSON AND COMPANY |
| T1368-13A | 07TA6 | CARDINAL HEALTH 200, LLC |
| T1368-13 | 07TA6 | CARDINAL HEALTH 200, LLC |
| FALCON | 64767 | CD ACQUISITION HOLDINGS INC |
| B25756 | 64767 | CD ACQUISITION HOLDINGS INC |
| 14-959-38C | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 9217G15 | 59728 | THOMAS, ARTHUR H CO (INC) |
Technical Data | NSN 6640-00-191-6502
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYSTYRENE |
| STYLE DESIGNATOR | THREADED TOP ROUND BOTTOM |
| OVERALL LENGTH | 100.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 13.00 MILLIMETERS NOMINAL |
| CAPACITY RATING | AMA8.000 MILLILITERS |
| CALIBRATION FUNCTION | UNGRADUATED |
| SCALE MARKING | 0.5 ML; 5 ML |
| FEATURES PROVIDED | DISPOSABLE AND NONSTERILE |
| PRIMARY CONTAINER TYPE | H ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 125 |
| TOTAL PRIMARY CONTAINER QUANTITY | 8 |
| SPECIAL FEATURES | CULTURE TYPE; WITH SCREW CAP |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | TEST TUBE13X100MM DISP 1000S CAPACITY 8 ML POLYSTYRENE W/CAP |
