NSN 6640-00-279-2125
Part Details | BOILING FLASK
6640-00-279-2125 A globe-shaped vessel with a neck, and a flat or round bottom, designed to contain substances to be heated or boiled. Its mouth may be designed to accommodate either a rubber stopper or a ground joint. For flasks having more than one neck, see FLASK, DISTILLING.
Alternate Parts: 4280, 421260, NNNF00240, 6640-00-279-2125, 00-279-2125, 6640002792125, 002792125
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | AUG 12, 1973 | 00-279-2125 | 16770 ( FLASK, BOILING ) |

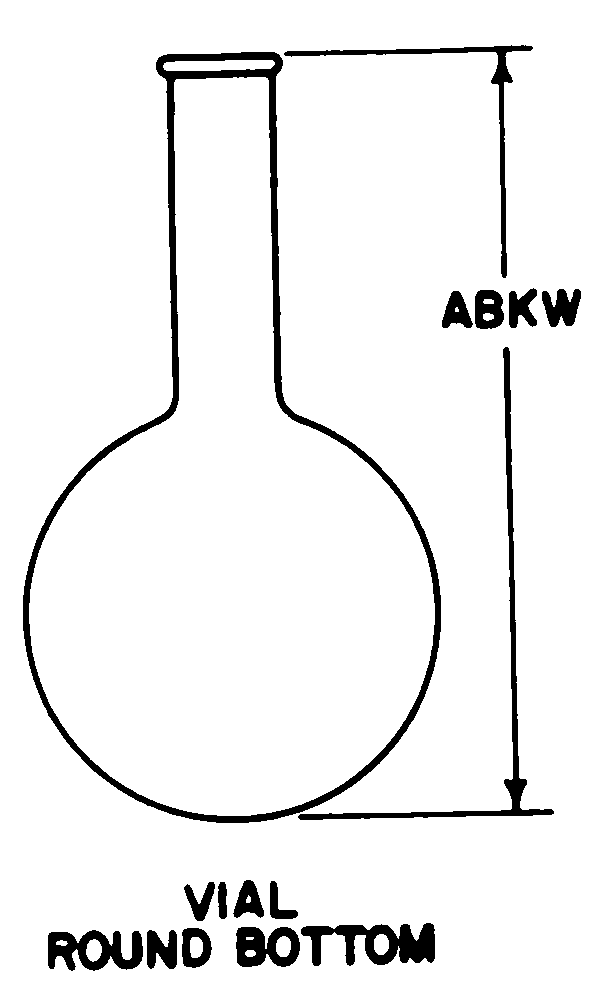

REFERENCE DRAWINGS & PICTURES
VIAL ROUND BOTTOM
Cross Reference | NSN 6640-00-279-2125
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4280 | 14674 | CORNING GLASS WORKS |
| 421260 | 14674 | CORNING GLASS WORKS |
| NNNF00240 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 6640-00-279-2125
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | VIAL ROUND BOTTOM |
| OVERALL HEIGHT | 6.500 INCHES NOMINAL |
| CAPACITY RATING | AMA300.000 MILLILITERS |
| PRIMARY CONTAINER TYPE | CX ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 2 CLASS AND 1 STYLE |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY CAPACITY RATING |
