NSN 6640-00-359-9753
Part Details | FILTERING CRUCIBLE HOLDER
6640-00-359-9753 A device specifically designed to mechanically accommodate, suspend and position a filtering crucible within the bell of a funnel or the mouth of a flask.
Alternate Parts: 08285, 08-285, 8285, 8-285, 33332H60, 33332-H60, 6640-00-359-9753, 00-359-9753, 6640003599753, 003599753
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | MAR 18, 1966 | 00-359-9753 | 18870 ( HOLDER, FILTERING CRUCIBLE ) |

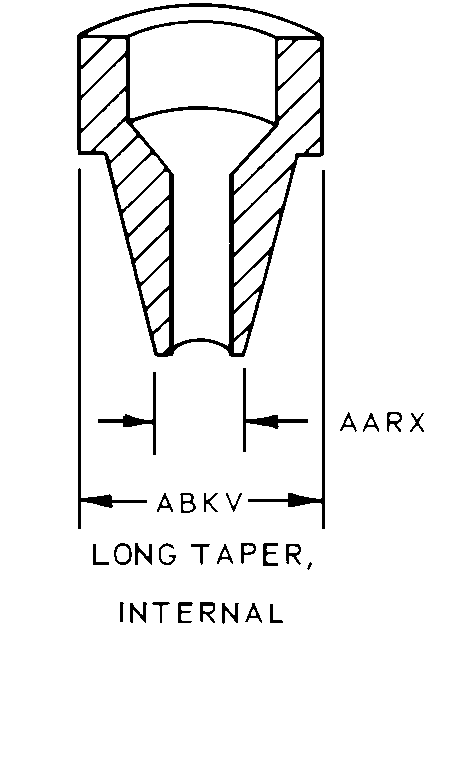

REFERENCE DRAWINGS & PICTURES
LONG TAPER, INTERNAL
Cross Reference | NSN 6640-00-359-9753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08-285 | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 8-285 | 94480 | FISHER SCIENTIFIC WORLDWIDE |
| 33332-H60 | 59728 | THOMAS, ARTHUR H CO (INC) |
Technical Data | NSN 6640-00-359-9753
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LONG TAPER, INTERNAL |
| INSIDE DIAMETER | 22.000 MILLIMETERS NOMINAL |
| OUTSIDE DIAMETER | 42.000 MILLIMETERS NOMINAL |
| MATERIAL | RUBBER |
| SPECIAL FEATURES | WALTER MODEL,W/GLASS STEM GROUND AT 45 DEG ANGLE |
