NSN 6640-00-426-0900
Part Details | LABORATORY FILTERING FUNNEL
6640-00-426-0900 An item with an integral porous or perforated plate, or with slits on the inside of a double wall.
Alternate Parts: 36060150M, 36060-150M, 10358L, 10-358L, 1035822J, 10-358-22J, 284001502, 28400-1502, MS360925, MS36092-5, 5220G16, 6640-00-426-0900, 00-426-0900, 6640004260900, 004260900
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-426-0900 | 13458 ( FUNNEL, FILTERING, LABORATORY ) |

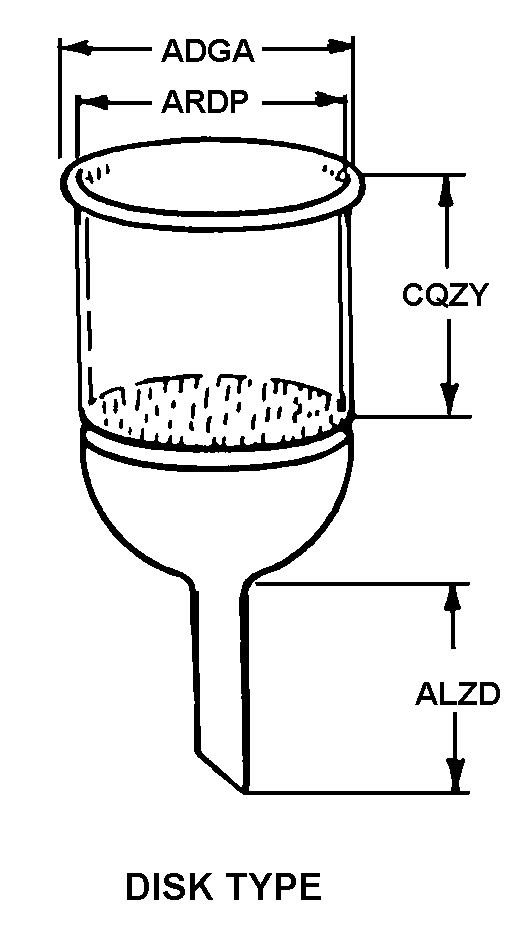

REFERENCE DRAWINGS & PICTURES
DISK TYPE
Cross Reference | NSN 6640-00-426-0900
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 36060-150M | 2D830 | CORNING INCORPORATEDDBA CORNING |
| 10-358L | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 10-358-22J | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 28400-1502 | 75278 | KIMBLE GLASS INC |
| MS36092-5 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 5220G16 | 59728 | THOMAS, ARTHUR H CO (INC) |
Technical Data | NSN 6640-00-426-0900
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | BUECHNER |
| STYLE DESIGNATOR | DISK TYPE |
| STEM LENGTH | 75.00 MILLIMETERS NOMINAL |
| DISK DIAMETER | 60.00 MILLIMETERS NOMINAL |
| DISTANCE FROM DISK TO TOP | 50.00 MILLIMETERS NOMINAL |
| FILTERING DISK TYPE AND SIZE | 14.0 MICRONS FIXED POROUS |
| CAPACITY RATING | 150.000 MILLILITERS NOMINAL |
| PRIMARY CONTAINER TYPE | CX ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
