NSN 6640-00-427-5025
Part Details | LABORATORY LIQUID GRADUATE
6640-00-427-5025 A vessel generally conically shaped which is graduated to measure standardized volumes of liquid.
Alternate Parts: MS359522, MS35952-2, 6640-00-427-5025, 00-427-5025, 6640004275025, 004275025
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-427-5025 | 16914 ( GRADUATE, LIQUID, LABORATORY ) |
REFERENCE DRAWINGS & PICTURES

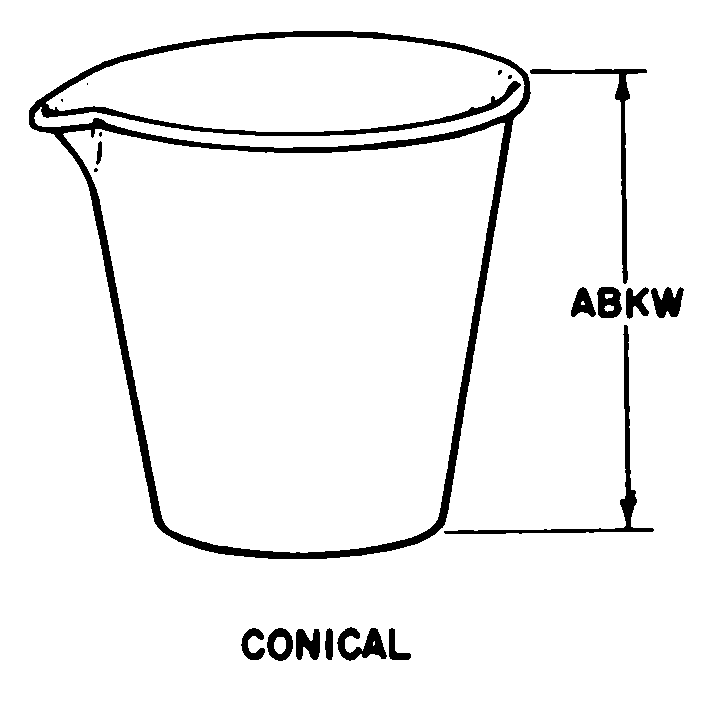

CONICAL
Cross Reference | NSN 6640-00-427-5025
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS35952-2 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 6640-00-427-5025
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | CONICAL |
| OVERALL HEIGHT | 4.562 INCHES NOMINAL |
| CAPACITY RATING | 500.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO DELIVER |
| SCALE MARKING | FIRST SCALE NUMBERED AT EVERY 2 OZ GRADUATION,SECOND SCALE NUMBERED AT EVERY 50 ML GRADUATION |
| GRADUATION MARKING METHOD | MOLDED |
| FEATURES PROVIDED | POUR-OUT |
| PRIMARY CONTAINER TYPE | CX ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | GRADUATE LIQUID LAB CORROSION RESISTING STEEL 500 ML CAPACITY |
