NSN 6640-00-431-4520
Part Details | LABORATORY LIQUID GRADUATE
6640-00-431-4520 A vessel generally conically shaped which is graduated to measure standardized volumes of liquid.
Alternate Parts: M32M, 101510, 10-1510, 5787S30, 95320, 6640-00-431-4520, 00-431-4520, 6640004314520, 004314520
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-431-4520 | 16914 ( GRADUATE, LIQUID, LABORATORY ) |
REFERENCE DRAWINGS & PICTURES

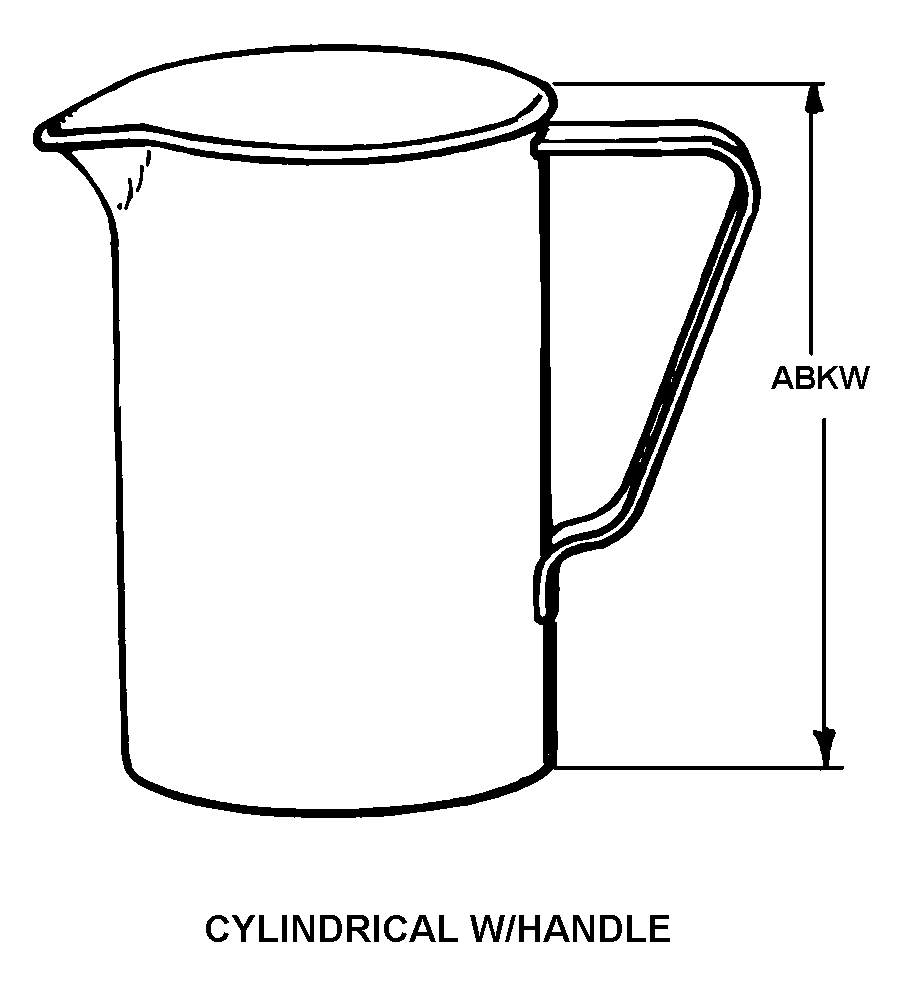

CYLINDRICAL W/HANDLE
Cross Reference | NSN 6640-00-431-4520
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M32M | 47911 | POLAR WARE COMPANY |
| 10-1510 | 55187 | SKLAR CORPORATIONDBA MISDOM FRANK & SKLAR |
| 5787S30 | 59728 | THOMAS, ARTHUR H CO (INC) |
| 95320 | 63277 | VOLLRATH COMPANY LLC THEDIV VOLLRATH CO |
Technical Data | NSN 6640-00-431-4520
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | CYLINDRICAL W/HANDLE |
| OVERALL HEIGHT | 4.750 INCHES MINIMUM AND 6.000 INCHES MAXIMUM |
| CAPACITY RATING | 1000.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO DELIVER |
| SCALE MARKING | FIRST SCALE EVERY 4 OZ GRADUATION,SECOND SCALE EVERY 100 ML GRADUATION |
| GRADUATION MARKING METHOD | MOLDED |
| FEATURES PROVIDED | HANDLE AND POUR-OUT |
| PRIMARY CONTAINER TYPE | CX ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | GRADUATE PITCHER |
