NSN 6640-00-494-3766
Part Details | LABORATORY SPATULA
6640-00-494-3766 A device consisting of a handle with a blade on one or both ends or with a blade on one end and a spoon on the other, made of porcelain, metal, or other material resistant to chemical attack. It is used to spread, mix, or convey powders or semi-solid materials. Excludes SPATULA.
Alternate Parts: 9007, 8340H20, 8340-H20, 6640-00-494-3766, 00-494-3766, 6640004943766, 004943766
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1960 | 00-494-3766 | 17490 ( SPATULA, LABORATORY ) |

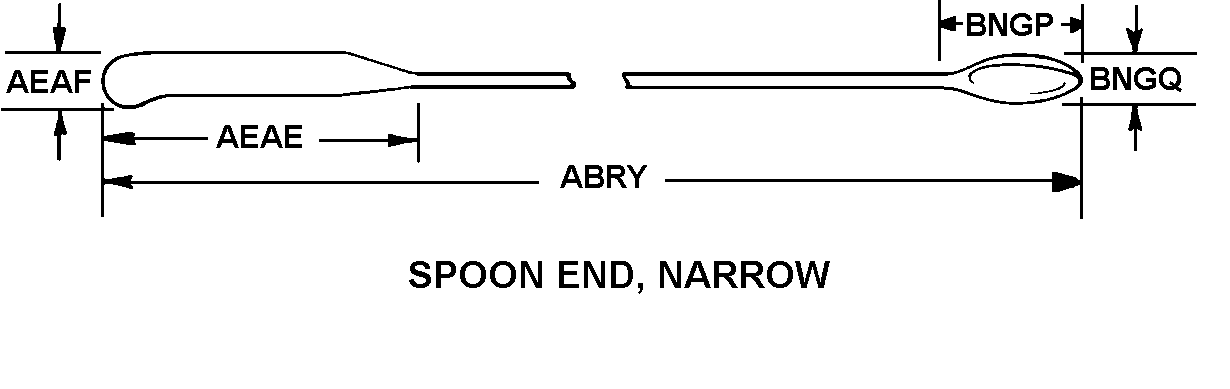

REFERENCE DRAWINGS & PICTURES
SPOON END, NARROW
Cross Reference | NSN 6640-00-494-3766
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9007 | 59728 | THOMAS, ARTHUR H CO (INC) |
| 8340-H20 | 59728 | THOMAS, ARTHUR H CO (INC) |
Technical Data | NSN 6640-00-494-3766
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPOON END, NARROW |
| LENGTH | 6.500 INCHES NOMINAL |
| BLADE LENGTH | 1.125 INCHES NOMINAL |
| BLADE WIDTH | 0.125 INCHES NOMINAL |
| SPOON LENGTH | 0.375 INCHES NOMINAL |
| SPOON WIDTH | 0.125 INCHES NOMINAL |
| BLADE MATERIAL | STEEL, CORROSION RESISTING |
| HANDLE MATERIAL | STEEL, CORROSION RESISTING |
| SPOON MATERIAL | STEEL, CORROSION RESISTING |
