NSN 6640-00-494-3922
Part Details | LABORATORY GLASSWARE ADAPTER
6640-00-494-3922 An item with standard tapered male and/or female joint(s) designed to adapt to various sizes of laboratory apparatus, such as flasks or condensers.
Alternate Parts: 8945, 948945, 94-8945, 8243501, 82-435-01, KT2060002440, KT206000-2440, 6640-00-494-3922, 00-494-3922, 6640004943922, 004943922
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-494-3922 | 18247 ( ADAPTER, LABORATORY GLASSWARE ) |
REFERENCE DRAWINGS & PICTURES

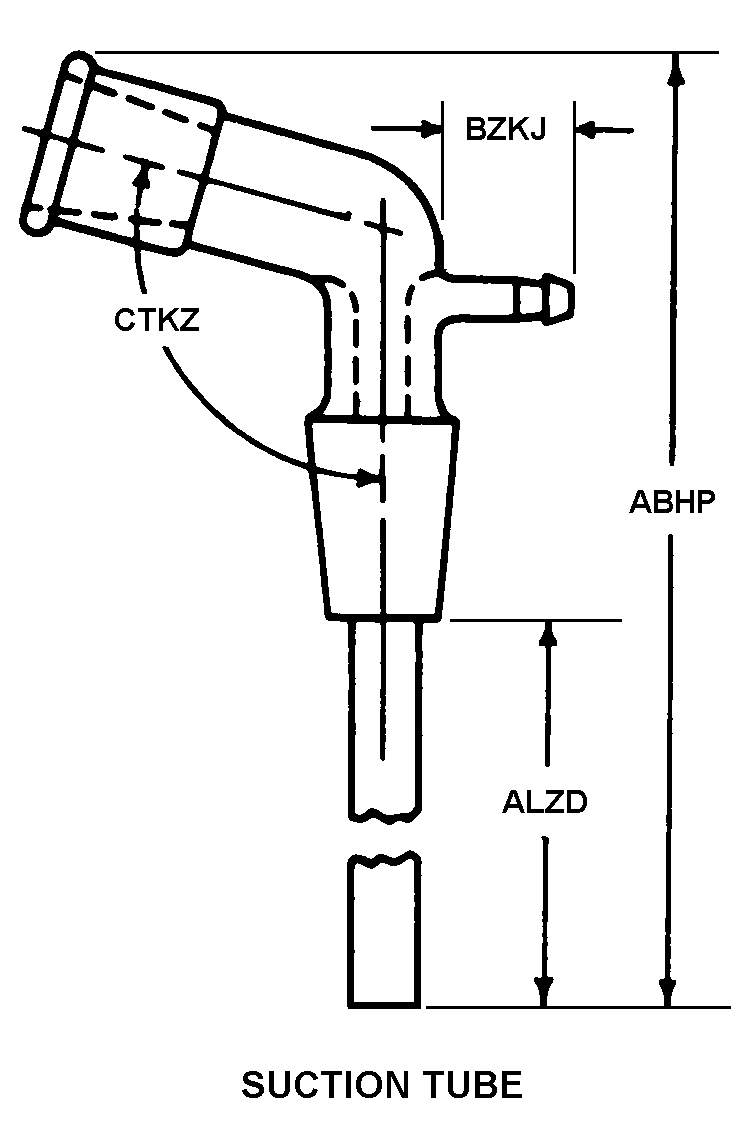

SUCTION TUBE
Cross Reference | NSN 6640-00-494-3922
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8945 | 14674 | CORNING GLASS WORKS |
| 94-8945 | 21519 | MANOSTAT CORP |
| 82-435-01 | 21519 | MANOSTAT CORP |
| KT206000-2440 | 2E624 | VWR INTERNATIONAL, LLCDBA VWR SCIENTIFIC |
Technical Data | NSN 6640-00-494-3922
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SUCTION TUBE |
| OVERALL LENGTH | 295.00 MILLIMETERS NOMINAL |
| STEM LENGTH | 170.00 MILLIMETERS NOMINAL |
| ANGLE | 105.0 DEGREES |
| PRIMARY CONTAINER TYPE | H$DADD |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
