NSN 6640-00-494-3923
Part Details | LABORATORY GLASSWARE ADAPTER
6640-00-494-3923 An item with standard tapered male and/or female joint(s) designed to adapt to various sizes of laboratory apparatus, such as flasks or condensers.
Alternate Parts: 8980, 898024, 8980-24, 153232, 15-323-2, MS362571, MS36257-1, 82360100, 82-3601-00, 5738HB2, 6640-00-494-3923, 00-494-3923, 6640004943923, 004943923
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-494-3923 | 18247 ( ADAPTER, LABORATORY GLASSWARE ) |

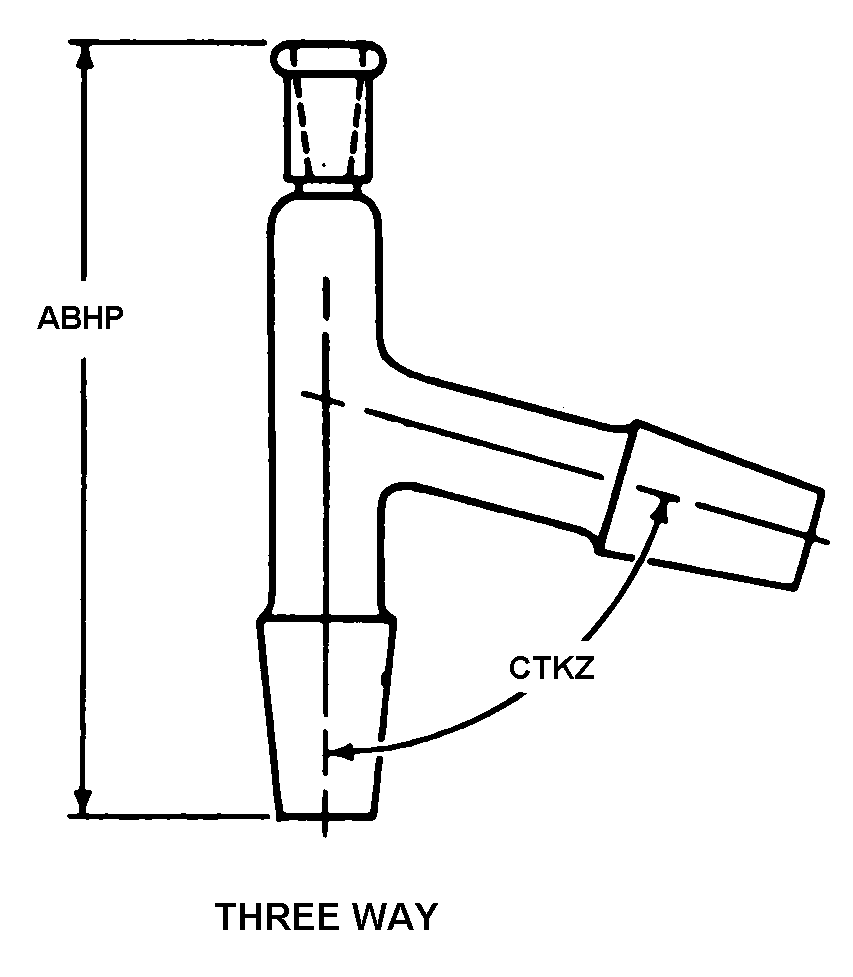

REFERENCE DRAWINGS & PICTURES
THREE WAY
Cross Reference | NSN 6640-00-494-3923
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8980 | 14674 | CORNING GLASS WORKS |
| 8980-24 | 2D830 | CORNING INCORPORATEDDBA CORNING |
| 15-323-2 | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| MS36257-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 82-3601-00 | 1AG17 | PGC SCIENTIFICS CORPORATION |
| 5738HB2 | 59728 | THOMAS, ARTHUR H CO (INC) |
Technical Data | NSN 6640-00-494-3923
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THREE WAY |
| OVERALL LENGTH | 160.00 MILLIMETERS NOMINAL |
| ANGLE | 75.0 DEGREES |
| PRIMARY CONTAINER TYPE | DD ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| SPECIAL FEATURES | THERMOMETER OPENING IN FORM OF OUTER JOINT |
