NSN 6640-00-495-5151
Part Details | LABORATORY DESICCATOR
6640-00-495-5151 A vessel with an airtight, sealing cover used to dry and store specimens in a moisture-free atmosphere. The cover may have an evacuation device in order to create a vacuum. Excludes DRYING APPARATUS, VACUUM and MICRODESICCATOR.
Alternate Parts: 8615A, 8-615A, 08615A, 08-615A, 6640-00-495-5151, 00-495-5151, 6640004955151, 004955151
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | MAR 23, 1972 | 00-495-5151 | 41971 ( DESICCATOR, LABORATORY ) |

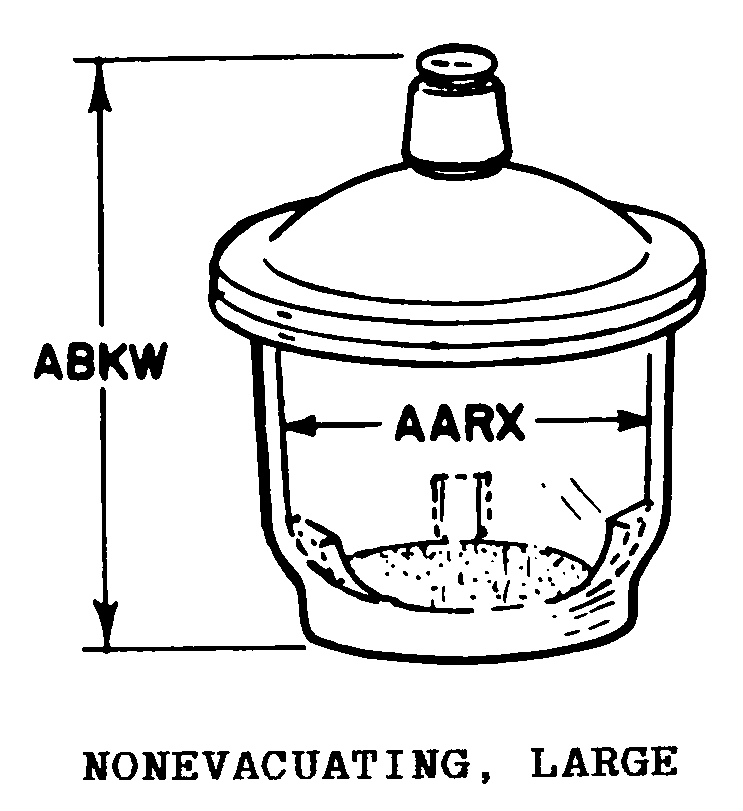

REFERENCE DRAWINGS & PICTURES
NONEVACUATING, LARGE
Cross Reference | NSN 6640-00-495-5151
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8-615A | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 08-615A | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
Technical Data | NSN 6640-00-495-5151
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS |
| STYLE DESIGNATOR | NONEVACUATING, LARGE |
| INSIDE DIAMETER | 200.00 MILLIMETERS NOMINAL |
| FEATURES PROVIDED | REMOVABLE PLATE |
| PRIMARY CONTAINER TYPE | H ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| SPECIAL FEATURES | PORCELAIN PLATE W/5 MM HOLES |
