NSN 6640-00-682-7283
Part Details | VOLUMETRIC PIPET
6640-00-682-7283 A tubular laboratory instrument which may include a bulb, usually having a single graduation. It is used to measure and deliver liquids. Excludes types which are adjusted for blowing out last drop.
Alternate Parts: P451850, P4518-50, ACCUPETTE, P451850, P4518-50, ACCUPETTE, 6640-00-682-7283, 00-682-7283, 6640006827283, 006827283
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | FEB 07, 1968 | 00-682-7283 | 16762 ( PIPET, VOLUMETRIC ) |
REFERENCE DRAWINGS & PICTURES

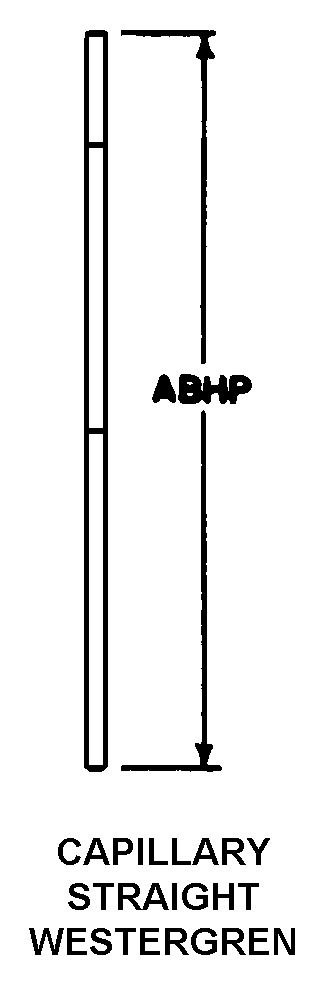

CAPILLARY STRAIGHT WESTERGREN
Cross Reference | NSN 6640-00-682-7283
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P4518-50 | 22353 | BAXTER HEALTHCARE CORPBAXTER SCIENTIFIC PRODUCTS DIV |
| ACCUPETTE | 22353 | BAXTER HEALTHCARE CORPBAXTER SCIENTIFIC PRODUCTS DIV |
| P4518-50 | 07TA6 | CARDINAL HEALTH 200, LLC |
| ACCUPETTE | 07TA6 | CARDINAL HEALTH 200, LLC |
Technical Data | NSN 6640-00-682-7283
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CAPILLARY STRAIGHT WESTERGREN |
| OVERALL LENGTH | 5.000 INCHES NOMINAL |
| CAPACITY RATING | 50.000 MICROLITERS NOMINAL |
| CALIBRATION FUNCTION | TO CONTAIN |
| SCALE MARKING | SINGLE MARK |
| FEATURES PROVIDED | DISPOSABLE |
| PRIMARY CONTAINER TYPE | CX ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 250 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| SPECIAL FEATURES | COLOR CODED GREEN; COMPLETE W/P4519-1 ASPIRATOR SET AND P4518-1 ADAPTER |
