NSN 6640-00-800-9037
Part Details | BLOOD SUGAR DETERMINATION TEST TUBE
6640-00-800-9037 A graduated vessel used to contain blood specimens during sugar content testing.
Alternate Parts: 7840, NNNT170, 47124, 6640-00-800-9037, 00-800-9037, 6640008009037, 008009037
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1962 | 00-800-9037 | 18772 ( TEST TUBE, BLOOD SUGAR DETERMINATION ) |

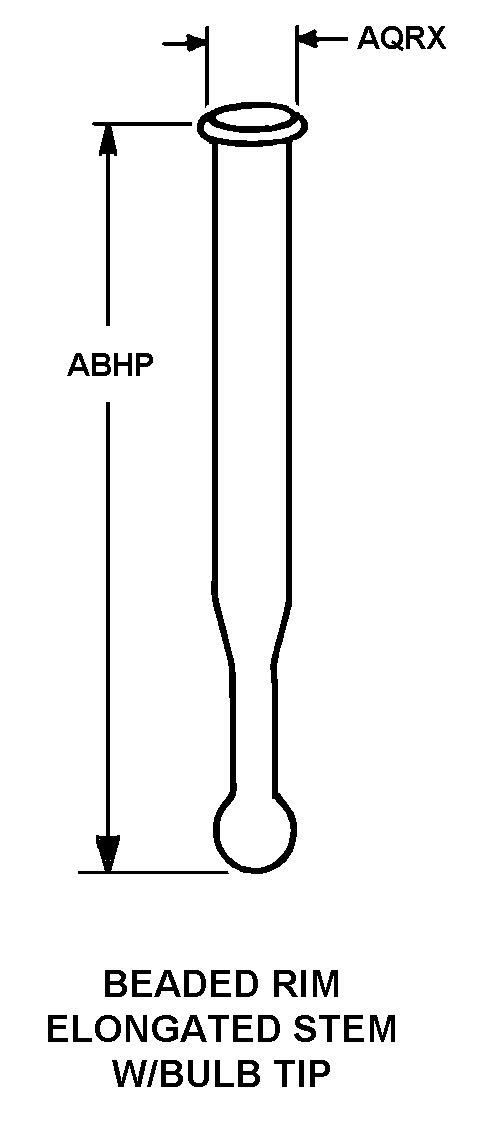

REFERENCE DRAWINGS & PICTURES
BEADED RIM ELONGATED STEM W/BULB TIP
Cross Reference | NSN 6640-00-800-9037
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7840 | 14674 | CORNING GLASS WORKS |
| NNNT170 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 47124 | 84116 | OWENS-ILLINOIS INCLABORATORY SALES KIMBLE DIV |
Technical Data | NSN 6640-00-800-9037
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BEADED RIM ELONGATED STEM W/BULB TIP |
| OVERALL LENGTH | 220.00 MILLIMETERS NOMINAL |
| TUBING OUTSIDE DIAMETER | 18.00 MILLIMETERS NOMINAL |
| CAPACITY RATING | 25.000 MILLILITERS NOMINAL |
| SCALE MARKING | 25 ML,12.5 ML |
| SPECIAL FEATURES | KRAMER-GITTLEMAN TYPE |
| DEPARTURE FROM CITED DOCUMENT | BBQT,FEAT |
