NSN 6640-00-889-1712
Part Details | PIPET FILLER
6640-00-889-1712 An item used in drawing corrosive, infectious, poisonous, or other liquids into pipets without using the mouth.
Alternate Parts: G20389, P5311, P5310, P5310, 269654, 269-654, 1368151, 13-681-51, 6640-00-889-1712, 00-889-1712, 6640008891712, 008891712
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1962 | 00-889-1712 | 24076 ( FILLER, PIPET ) |

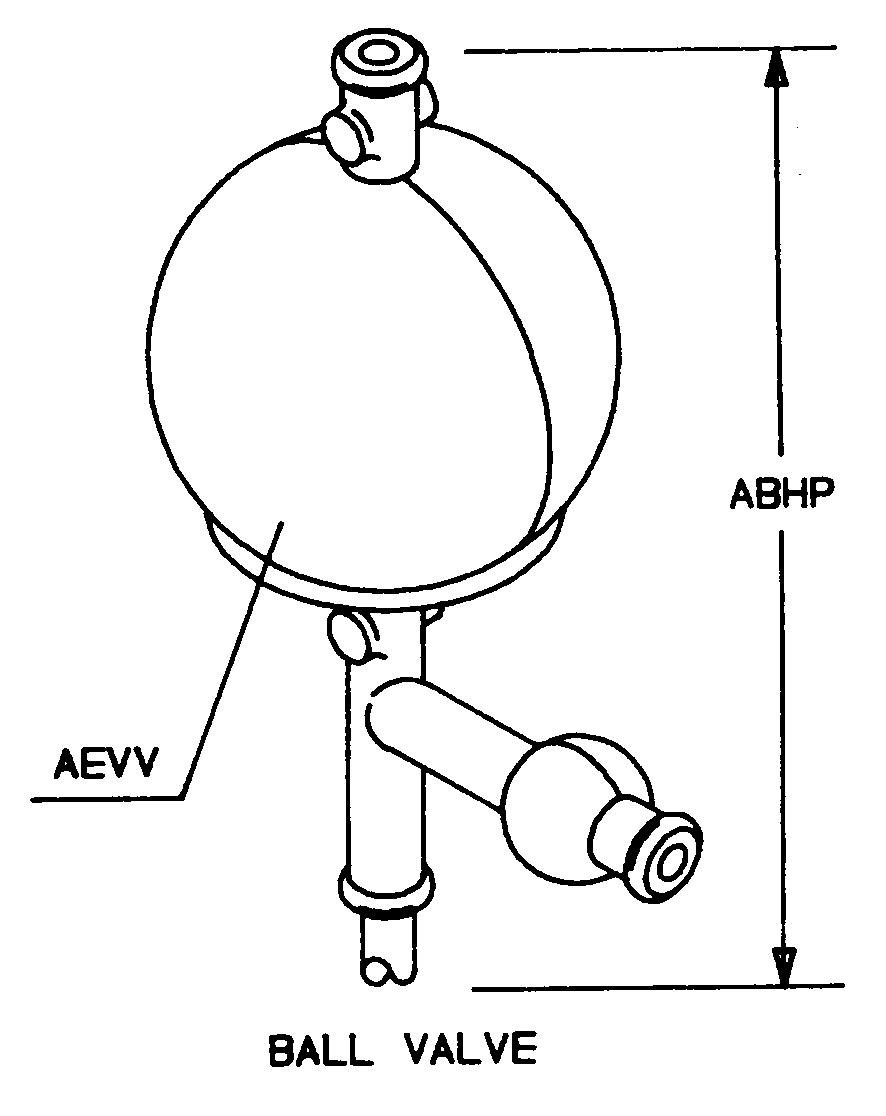

REFERENCE DRAWINGS & PICTURES
BALL VALVE
Cross Reference | NSN 6640-00-889-1712
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G20389 | 15747 | A. DAIGGER AND COMPANY, INCORPORATEDDBA ETA HAND2MIND |
| P5311 | 3D203 | BAXTER HEALTHCARE CORPBAXTER HOSPITAL SUPPLY DIV |
| P5310 | 22353 | BAXTER HEALTHCARE CORPBAXTER SCIENTIFIC PRODUCTS DIV |
| P5310 | 07TA6 | CARDINAL HEALTH 200, LLC |
| 269-654 | 15481 | CURTIN MATHESON SCIENTIFIC INC |
| 13-681-51 | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
Technical Data | NSN 6640-00-889-1712
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER |
| STYLE DESIGNATOR | BALL VALVE |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| BULB DIAMETER | 2.000 INCHES NOMINAL |
| PRIMARY CONTAINER TYPE | FL ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 5 |
| SPECIAL FEATURES | BALL VALVE TY; 3 VALVES; MAX TOP DIA OF PIPET ACCOMMODATED |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FILLER PIPET RUBBER 2"DIA 3.5"LG BALL VALVE TYPE 3 VALVES |
