NSN 6640-01-024-3990
Part Details | NONVOLUMETRIC PIPET
6640-01-024-3990 A tubular, ungraduated instrument with a capillary end and a top that may be constricted. It is generally used in the transfer of virus, bacteriology, immunology, hematology, blood bank, and other laboratory work. Excludes types that are graduated and/or designed for specific use.
Alternate Parts: B 75100, B 75-100, 137115AM, 13-711-5AM, 137115A, 13-711-5A, 6640-01-024-3990, 01-024-3990, 6640010243990, 010243990
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JUL 10, 1976 | 01-024-3990 | 28195 ( PIPET, NONVOLUMETRIC ) |
REFERENCE DRAWINGS & PICTURES

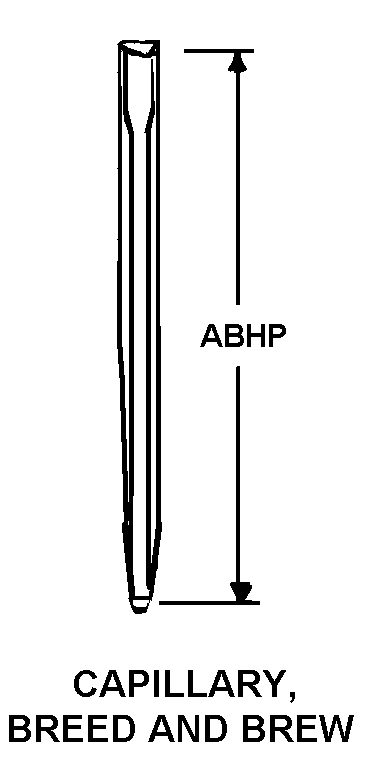

CAPILLARY, BREED AND BREW
Cross Reference | NSN 6640-01-024-3990
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B 75-100 | 61333 | BERAL ENTERPRISES INC |
| 13-711-5AM | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 13-711-5A | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
Technical Data | NSN 6640-01-024-3990
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYETHYLENE |
| STYLE DESIGNATOR | 1 CAPILLARY, BREED AND BREW |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| CAPACITY RATING | 5.000 MILLILITERS NOMINAL |
| COLOR CODING | CLEAR |
| FEATURES PROVIDED | DISPOSABLE |
| PRIMARY CONTAINER TYPE | FL ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 500 |
| SPECIAL FEATURES | ONE PIECE CONTRUCTION W/MOLDED BULB; SINGLE SQUEEZE DRAWS UP TO 2 ML; W/CONTROLLED DROP TIP |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | PIPET NONVOLUMETRIC PLAS POLYETHYLENE M31 5ML CAP 6IN O/A LG500S |
