NSN 6640-01-061-8178
Part Details | LABORATORY IGNITION CRUCIBLE
6640-01-061-8178 A vessel with a flat base, straight or tapered sides, designed to contain substances that are heated or melted at high temperatures. It is used to obtain samples by drying.
Alternate Parts: 528038, 528-038, 6640-01-061-8178, 01-061-8178, 6640010618178, 010618178
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JUN 30, 1978 | 01-061-8178 | 12861 ( CRUCIBLE, IGNITION, LABORATORY ) |
REFERENCE DRAWINGS & PICTURES

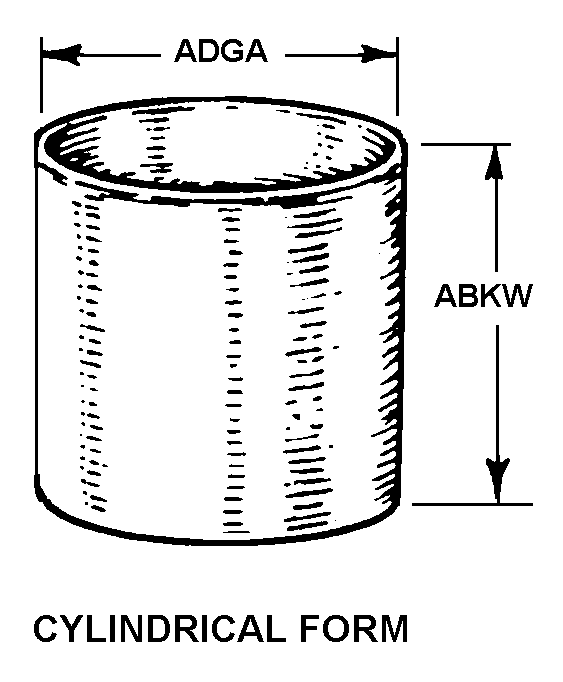

CYLINDRICAL FORM
Cross Reference | NSN 6640-01-061-8178
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 528-038 | 94174 | LECO CORPORATIONDBA TEM-PRESS DIVISION |
Technical Data | NSN 6640-01-061-8178
| Characteristic | Specifications |
|---|---|
| MATERIAL | CERAMIC |
| DESIGN DESIGNATION | LECO |
| STYLE DESIGNATOR | CYLINDRICAL FORM |
| OVERALL HEIGHT | 1.125 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.125 INCHES NOMINAL |
| PRIMARY CONTAINER TYPE | CD ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1000 |
| SPECIAL FEATURES | HIGHLY RESISTANT TO SLAG PENETRATION AND THERMAL SHOCK |
