NSN 6685-00-152-3982
Part Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-00-152-3982 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Alternate Parts: 85T8487K41E08002504001200F, 85-T8487K-41E-080-0250-400-1200F, 81GNN00RW25Y, 81GNP00UW25Y, 81GN-P00U-W25Y, 81GNN00UW25Y, 81GN-N00U-W25Y, M27400REVF, M27-400REVF, M19646B412H825, M19646-B412H825, MILT19646, MIL-T-19646, 6685-00-152-3982, 00-152-3982, 6685001523982, 001523982
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | OCT 18, 1971 | 00-152-3982 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |
REFERENCE DRAWINGS & PICTURES

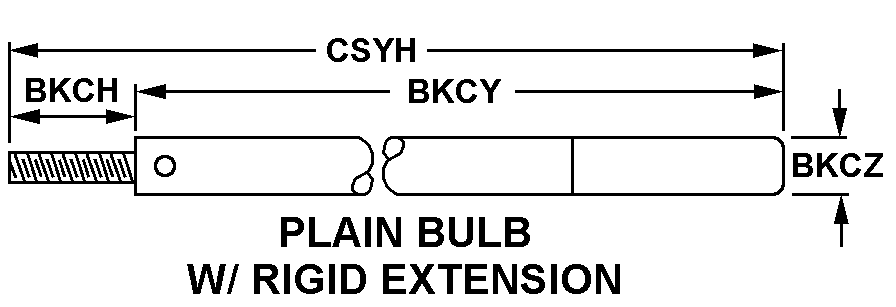

PLAIN BULB W/RIGID EXTENSION
BULB W/O SOCKET
Cross Reference | NSN 6685-00-152-3982
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 85-T8487K-41E-080-0250-400-1200F | 38056 | ASHCROFT INC. |
| 81GNN00RW25Y | 049X3 | ASHCROFT INC.DBA WEKSLER |
| 81GN-P00U-W25Y | 049X3 | ASHCROFT INC.DBA WEKSLER |
| 81GN-N00U-W25Y | 049X3 | ASHCROFT INC.DBA WEKSLER |
| M27-400REVF | 049X3 | ASHCROFT INC.DBA WEKSLER |
| M19646-B412H825 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-T-19646 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 6685-00-152-3982
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | DIAL |
| SCALE MEASUREMENT RANGE | +400.000 TO +1200.000 DEG FAHRENHEIT |
| STYLE DESIGNATOR | BULB W/O SOCKET |
| BULB TIP LENGTH | 3.500 INCHES NOMINAL |
| CASE DIAMETER | 10.250 INCHES NOMINAL |
| DIAL DIAMETER | 8.500 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE AND 1 REFERENCE SINGLE |
| INDICATOR CONNECTION METHOD | FLEXIBLE TUBE |
| BULB TYPE | PLAIN RIGID |
| BULB QUANTITY | 1 |
| BULB STYLE | PLAIN BULB W/RIGID EXTENSION |
| ACTIVE PORTION LENGTH | 3.500 INCHES NOMINAL |
| ACTIVE PORTION DIAMETER | 0.975 INCHES NOMINAL |
| BULB OVERALL LENGTH | 8.000 INCHES NOMINAL |
| EXTENSION NECK LENGTH | 4.500 INCHES NOMINAL |
| BULB CONNECTION TYPE | INTEGRAL FLANGE |
| FLEXIBLE TUBE LENGTH | 300.000 INCHES NOMINAL |
| ACTUATING MEDIUM | GAS |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SURFACE AND 3 HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | 9.625 INCHES NOMINAL |
| CASE TYPE | SHOCK PROOF |
| NONDEFINITIVE SPEC/STD DATA | C CLASS |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON YELLOW BACKGROUND |
| SCALE ACCURACY RATING | 10 DEG ENTIRE RANGE |
| SCALE SMALLEST INCREMENT | 10.0 DEG FAHRENHEIT |
