NSN 6685-00-167-9235
Part Details | PLUG HUMIDITY INDICATOR
6685-00-167-9235 An item which uses the changing color of a desiccant in the presence of moisture to indicate humidity. The desiccant is in a plug through which the color may be observed and compared with a chart.
Alternate Parts: TA357RF12345, TA3572345RFI, TA357-2345-RFI, 21562345PRFI, 2156-2345P-RFI, 504000, 5-04000, 8034636, 6685-00-167-9235, 00-167-9235, 6685001679235, 001679235
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JUN 14, 1968 | 00-167-9235 | 08357 ( INDICATOR, HUMIDITY, PLUG ) |

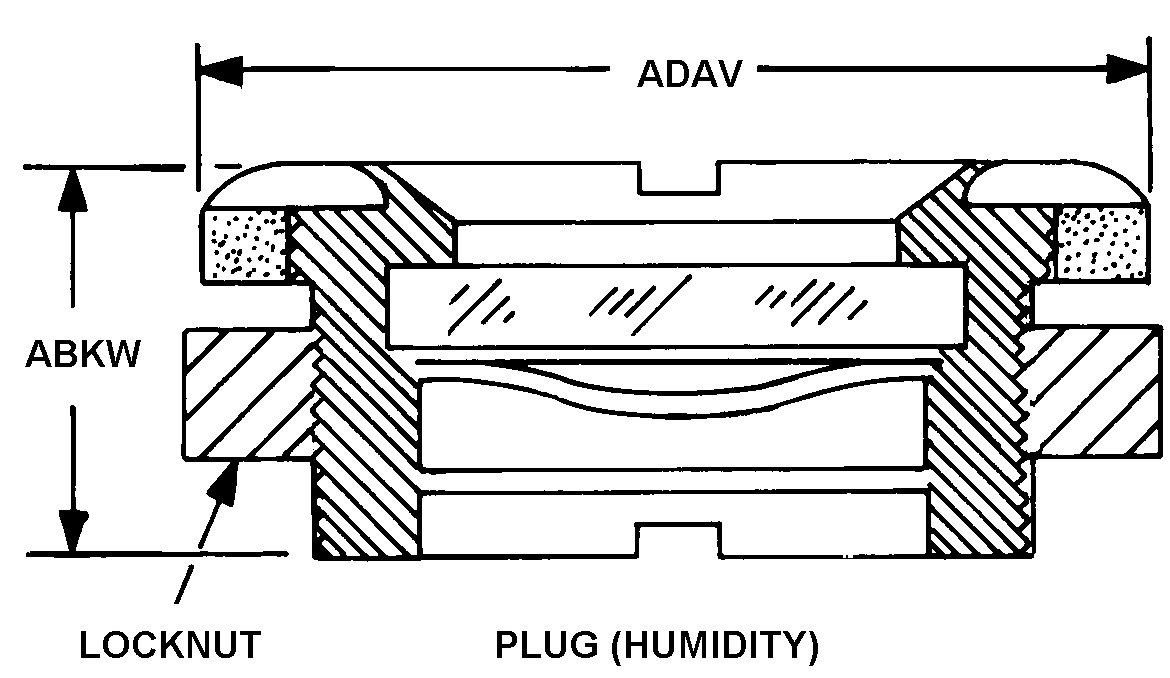

REFERENCE DRAWINGS & PICTURES
PLUG
Cross Reference | NSN 6685-00-167-9235
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TA357RF12345 | 08992 | AGM CONTAINER CONTROLS INC.DBA A G M |
| TA357-2345-RFI | 08992 | AGM CONTAINER CONTROLS INC.DBA A G M |
| 2156-2345P-RFI | 00334 | CLARIANT CORPORATION |
| 5-04000 | 0NKU0 | LCT ELECTRONICS |
| 8034636 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 6685-00-167-9235
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | PLUG |
| OVERALL DIAMETER | 1.590 INCHES NOMINAL |
| OVERALL HEIGHT | 0.620 INCHES NOMINAL |
| DESICCANT SPOT HUMIDITY PERCENTAGE | B20.0$$B30.0$$B40.0$$B50.0 |
| END ITEM IDENTIFICATION | (WS)TANK, SHERIDAN M-551; CHAPARRAL/VULCAN ADS |
