NSN 6685-00-169-6474
Part Details | SELF-INDICATING THERMOMETER
6685-00-169-6474 An item that has confined liquid whose physical property(ies) changes with variation in temperature and indicates the temperature to a division or number on a graduated scale(s). May include flexible tubing (capillary) for indoor/outdoor applications. Excludes: THERMOMETER, CLINICAL, HUMAN.
Alternate Parts: 891MA16, 703ST, 891MA16, 6685-00-169-6474, 00-169-6474, 6685001696474, 001696474
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | AUG 19, 1972 | 00-169-6474 | 42787 ( THERMOMETER, SELF-INDICATING ) |

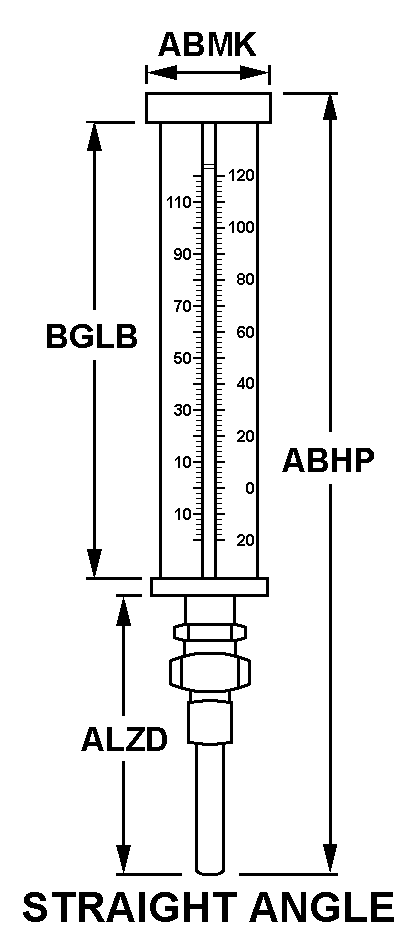

REFERENCE DRAWINGS & PICTURES
STRAIGHT ANGLE
Cross Reference | NSN 6685-00-169-6474
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 891MA16 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
| 703ST | 76526 | MOELLER INSTRUMENT COMPANY, INC. |
| 891MA16 | 40152 | VME AMERICAS INCSUB OF VME GROUP N V |
Technical Data | NSN 6685-00-169-6474
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | VERTICAL |
| STYLE DESIGNATOR | STRAIGHT ANGLE |
| SCALE LENGTH | 7.000 INCHES NOMINAL |
| STEM LENGTH | 3.500 INCHES NOMINAL |
| DESIGN TYPE | FLUCTUATING |
