Part Details | ELECTRICAL FREQUENCY AND TIME TOTALIZING METER
6695-01-356-8013 An electrically operated instrument consisting of two or more independent meter movements, within a common housing, one of which must conform to METER, TIME TOTALIZING, the other(s) to METER, ELECTRICAL FREQUENCY, utilizing the vabrating reed method of indicating electrical frequency. For items consisting of two or more independent meter movements, whose pointers traverse a common dial, see METER, ELECTRICAL, MULTIMOVEMENT.
Alternate Parts: 81210262931, 812-10-26-29-31, 6695-01-356-8013, 01-356-8013, 6695013568013, 013568013
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | APR 10, 1992 | 01-356-8013 | 19744 ( METER, FREQUENCY AND TIME TOTALIZING, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

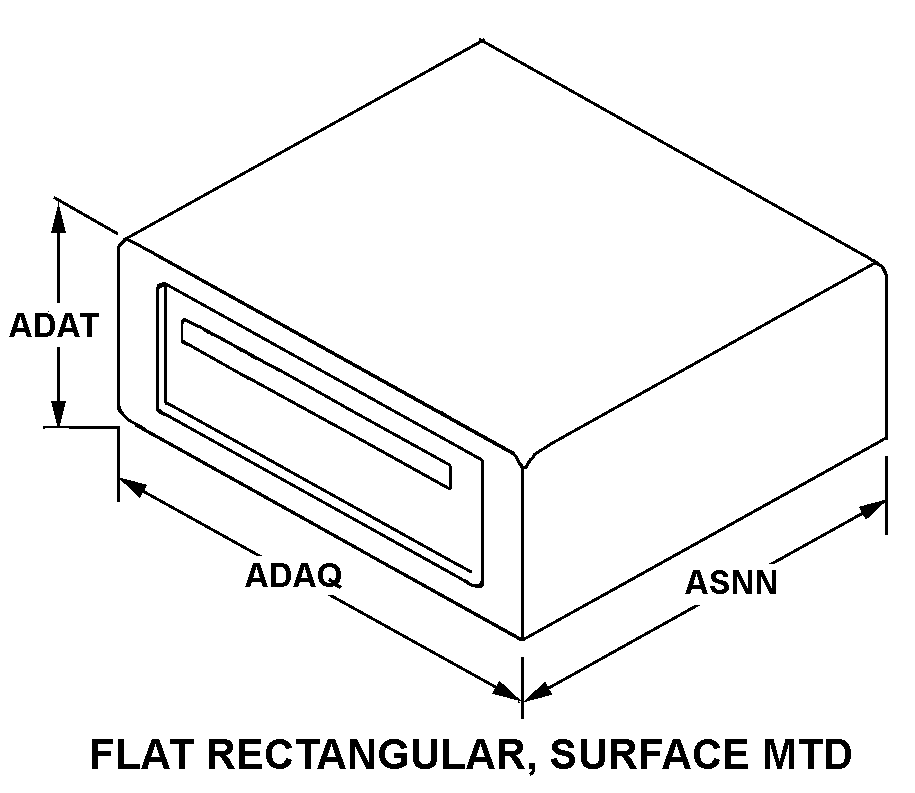

FLAT RECTANGULAR, SURFACE MTD
Cross Reference | NSN 6695-01-356-8013
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 812-10-26-29-31 | 58677 | ELECSYS INTERNATIONAL CORPORATION |
Technical Data | NSN 6695-01-356-8013
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLAT RECTANGULAR, SURFACE MTD |
| MEASUREMENT UNIT | CB ANY ACCEPTABLE |
| MAXIMUM MEASUREMENT | 99.99 |
| RESET FEATURE | PROVIDED |
| VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| FREQUENCY RATING | 50.0 HERTZ MINIMUM AND 400.0 HERTZ MAXIMUM |
| SPECIAL FEATURES | REMOVE FRONT PANEL SWITCHES; NO LOGO; HEAVY DUTY INPUT/OUTPUT CONNECTOR; "SECONDS" LEGEND; CRYSTAL TIMEBASE; OPERATING TEMPERATURE RANGE ZERO TO FIFTY DEGREES CELSIUS; OVERALL DEPTH 5.250 INCHES; OVERALL WIDTH 4.500 INCHES; OVERALL HEIGHT 2.500 INCHES; PANEL CUTOUT 4.370 INCHES WIDE AND 2.250 INCHES HIGH |
| END ITEM IDENTIFICATION | OHIO CLASS SSN (TRIDENT) SHIP |
