NSN 7530-01-622-2877
Part Details | LABEL
7530-01-622-2877 A flexible item designed to be affixed to an object by adhesion or sewing to indicate contents, destination, or other similar identification. It may be blank with a surface designed for marking, preprinted, or have data woven into it. May be in roll form if perforations or markings are provided for detaching items of a specific length, or if separate labels are affixed to a continuous roll of backing material. Excludes MARKER, IDENTIFICATION; PLATE, IDENTIFICATION; TAPE IDENTIFICATION; and TAPE, PRESSURE SENSITIVE ADHESIVE.
Alternate Parts: 29795 212IN.W.X 1IN.H., 29795 2-1/2IN.W.X 1IN.H., LAT217471YL, LAT-21-747-1-YL, 7530-01-622-2877, 01-622-2877, 7530016222877, 016222877
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 75 | OCT 02, 2013 | 01-622-2877 | 03247 ( LABEL ) |

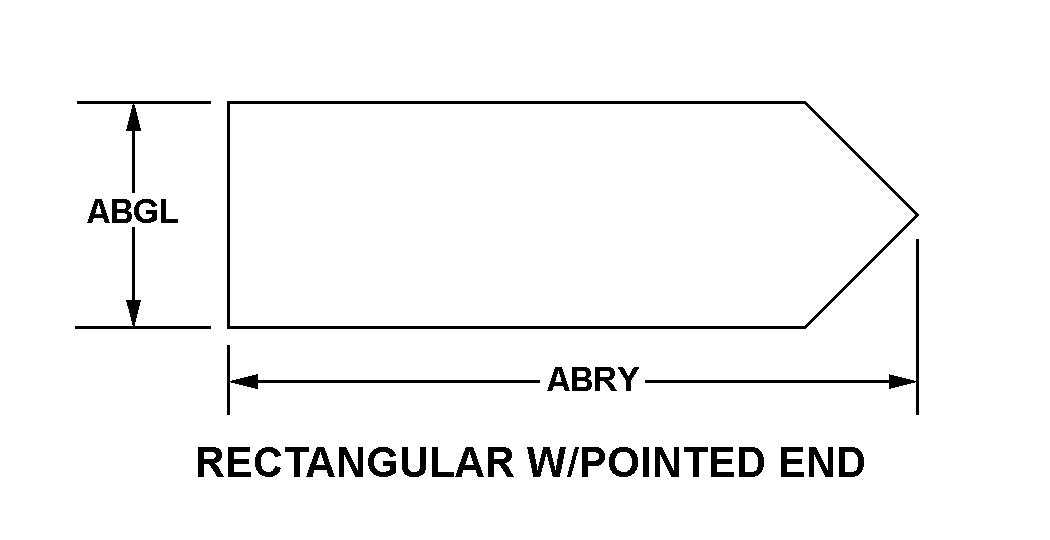

REFERENCE DRAWINGS & PICTURES
RECTANGULAR W/POINTED END
Cross Reference | NSN 7530-01-622-2877
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 29795 2-1/2IN.W.X 1IN.H. | 85480 | BRADY UNITED STATES |
| LAT-21-747-1-YL | 85480 | BRADY UNITED STATES |
Technical Data | NSN 7530-01-622-2877
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYESTER |
| ATTACHMENT METHOD | PRESSURE SENSITIVE ADHESIVE |
| ADHESIVE LOCATION | BACK |
| BASIC SHAPE STYLE | RECTANGULAR W/POINTED END |
| WIDTH | 1.000 INCHES NOMINAL |
| LENGTH | 2.500 INCHES NOMINAL |
| SPECIAL FEATURES | PRINTABLE LASER TAB - (MM SIZE 63.500 W. X 25.400 H.); SHEET SIZE - 8-1/2 IN. X 11 IN., 27 PER SHEET, 3 ROWS;HORIZONTAL REPEAT - 2.600 IN.(66.04 MM); FINISH MATERIAL - MATTE; LEFT MARGIN 0.400 IN.(10.16MM); TOP MARGIN 0.875IN.(22.23MM); ROHS COMPATIBILITY - PASS 2002/95/EC, PERMANENT POLYESTER |
