NSN 8115-01-371-1822
Part Details | INTERMEDIATE PACKAGING BOX
8115-01-371-1822 A box usually in flat or folded form which has been cut and scored for forming into a box or it may be already set up for use. It is primarily used as an inner container, one or more, which may be packed in a shipping box. Excludes BOX (1), SHIPPING. See also BOX (3), SMALL PARTS.
Alternate Parts: 733075700, 7330757-00, 8115-01-371-1822, 01-371-1822, 8115013711822, 013711822
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | FEB 08, 1993 | 01-371-1822 | 30091 ( BOX, INTERMEDIATE PACKAGING ) |
REFERENCE DRAWINGS & PICTURES

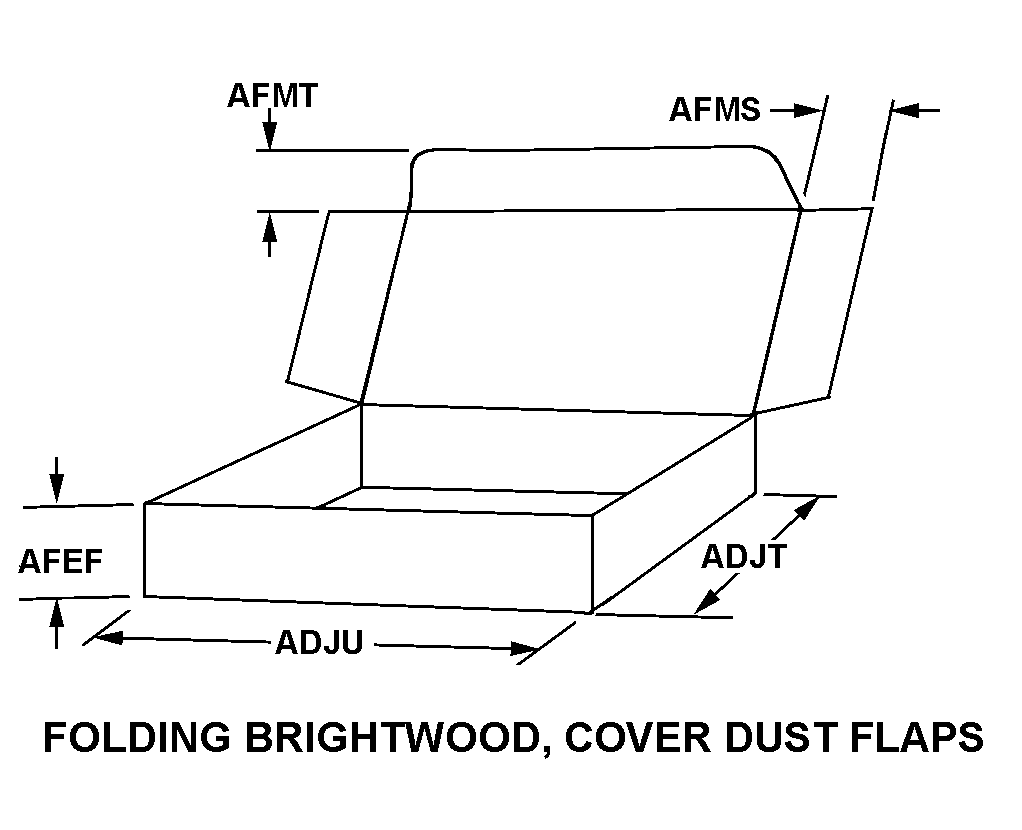

FOLDING BRIGHTWOOD, COVER DUST FLAPS
Cross Reference | NSN 8115-01-371-1822
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7330757-00 | 90536 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 8115-01-371-1822
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FOLDING BRIGHTWOOD, COVER DUST FLAPS |
| INSIDE LENGTH | 12.000 INCHES NOMINAL |
| INSIDE WIDTH | 9.500 INCHES NOMINAL |
| INSIDE DEPTH | 3.125 INCHES NOMINAL |
| ASSEMBLY FORM | SET-UP |
| CLOSURE METHOD | FLAPS |
