NSN 9390-00-202-1594
Part Details | NONMETALLIC SPECIAL SHAPED SECTION
9390-00-202-1594 A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION.
Alternate Parts: S1046071, S1046071, MILR3065, 9390-00-202-1594, 00-202-1594, 9390002021594, 002021594
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | JAN 01, 1963 | 00-202-1594 | 30219 ( NONMETALLIC SPECIAL SHAPED SECTION ) |
REFERENCE DRAWINGS & PICTURES

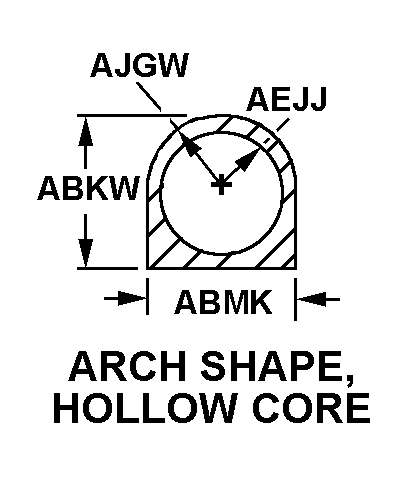

ARCH SHAPE, HOLLOW CORE
Cross Reference | NSN 9390-00-202-1594
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S1046071 | 88277 | BOEING COMPANY, THEDBA BOEING |
| S1046071 | 18355 | BOEING COMPANY, THEDBA BOEING |
| MILR3065 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 9390-00-202-1594
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | ARCH SHAPE, HOLLOW CORE |
| OVERALL HEIGHT | 0.656 INCHES NOMINAL |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| INSIDE RADIUS | 0.281 INCHES NOMINAL |
| OUTSIDE RADIUS | 0.312 INCHES NOMINAL |
| MATERIAL | RUBBER SYNTHETIC |
| NONMETALLIC HARDNESS RATING | 45.0 MINIMUM SHORE DUROMETER A AND 55.0 MAXIMUM SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | 1500 POUNDS PER SQUARE INCH |
| TEMP RATING | -67.0 DEG FAHRENHEIT |
| ENVIRONMENTAL PROTECTION | LOW TEMPERATURE |
| SPECIAL FEATURES | COLOR,BLACK |
