NSN 9390-00-222-4526
Part Details | NONMETALLIC ANGLE
9390-00-222-4526 A structural shape fabricated from nonmetallic material(s) resembling the letter "L" in cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC ANGLE.
Alternate Parts: 7E13, 7E13, AMS3208, 9390-00-222-4526, 00-222-4526, 9390002224526, 002224526
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | JAN 01, 1963 | 00-222-4526 | 30217 ( NONMETALLIC ANGLE ) |
REFERENCE DRAWINGS & PICTURES

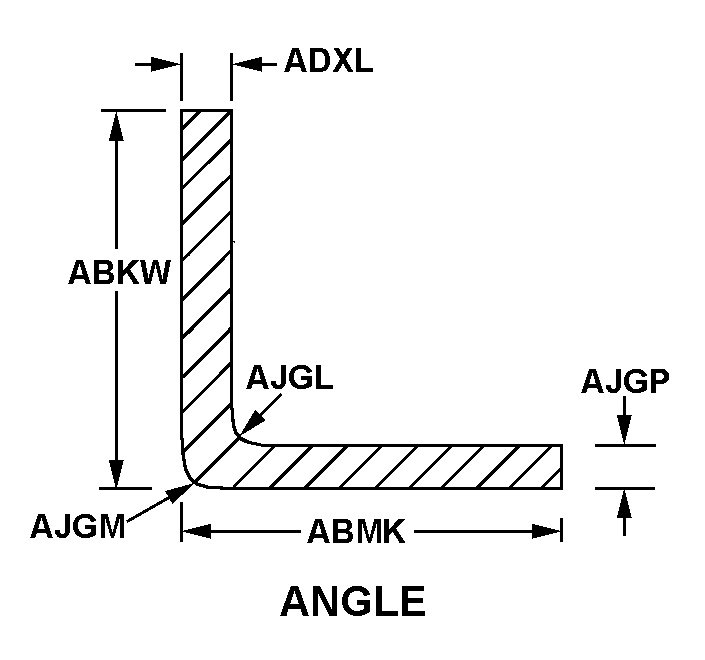

ANGLE
LEFT SQUARE END
BASE SQUARE END
Cross Reference | NSN 9390-00-222-4526
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7E13 | 70628 | ARROWHEAD PRODUCTS CORPORATION |
| 7E13 | 76680 | FEDERAL-MOGUL CORPCHASSIS PRODUCTS DIV |
| AMS3208 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Technical Data | NSN 9390-00-222-4526
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | ANGLE |
| OVERALL HEIGHT | 0.875 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.016 INCHES NOMINAL |
| OUTER RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.062 INCHES NOMINAL |
| LEFT-SIDE FLANGE TIP STYLE | LEFT SQUARE END |
| BASE FLANGE TIP STYLE | BASE SQUARE END |
| MATERIAL | RUBBER CHLOROPRENE CLASS CR |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 3208 ASSN STD SINGLE MATERIAL RESPONSE |
| NONMETALLIC HARDNESS RATING | 45.0 MINIMUM SHORE DUROMETER A AND 55.0 MAXIMUM SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | 1200 POUNDS PER SQUARE INCH |
| ENVIRONMENTAL PROTECTION | WEATHER RESISTANT |
| SPECIFICATION/STANDARD DATA | 81343-AS3208 MANUFACTURERS STANDARD |
