NSN 9390-00-226-9804
Part Details | NONMETALLIC CHANNEL
9390-00-226-9804 A structural shape fabricated from nonmetallic material(s) having two vertical flanges that extend in the same direction from each end of a horizontal base. The vertical flanges may have various type tips and additional flanges which extend on the same plane as the base. It may have a reinforcing agent(s) and backing Excludes SEAL, NONMETALLIC CHANNEL.
Alternate Parts: LS410441, LS41044-1, LS346481, LS34648-1, 9390-00-226-9804, 00-226-9804, 9390002269804, 002269804
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | MAY 17, 1973 | 00-226-9804 | 30218 ( NONMETALLIC CHANNEL ) |
REFERENCE DRAWINGS & PICTURES
OPEN CHANNEL

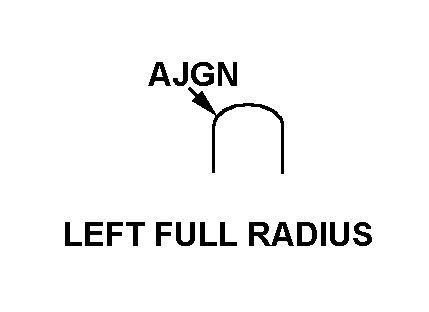

LEFT FULL RADIUS

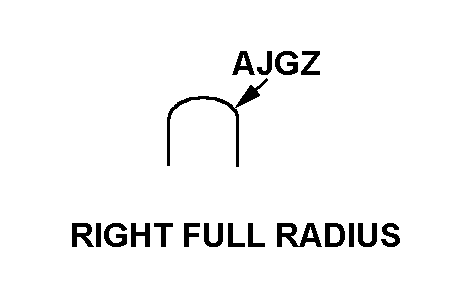

RIGHT FULL RADIUS
Cross Reference | NSN 9390-00-226-9804
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS41044-1 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| LS34648-1 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 9390-00-226-9804
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | OPEN CHANNEL |
| OVERALL HEIGHT | 0.560 INCHES NOMINAL |
| OVERALL WIDTH | 0.392 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 0.520 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.040 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.040 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.040 INCHES NOMINAL |
| LEFT-SIDE FLANGE TIP STYLE | LEFT FULL RADIUS |
| LEFT SIDE FLANGE TOP RADIUS | 0.020 INCHES NOMINAL |
| RIGHT-SIDE FLANGE TIP STYLE | RIGHT FULL RADIUS |
| RIGHT SIDE FLANGE TOP RADIUS | 0.020 INCHES NOMINAL |
| MATERIAL | PLASTIC VINYL |
| PHYSICAL FORM | SOLID |
| NONMETALLIC HARDNESS RATING | 78.0 NOMINAL SHORE DUROMETER A AND 78.0 NOMINAL SHORE DUROMETER D |
| SPECIAL FEATURES | COLOR,BLUE,FED. STD 595,25414 |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY LENGTH |
