NSN 9390-00-247-7286

Part Details | NONMETALLIC CHANNEL

9390-00-247-7286 A structural shape fabricated from nonmetallic material(s) having two vertical flanges that extend in the same direction from each end of a horizontal base. The vertical flanges may have various type tips and additional flanges which extend on the same plane as the base. It may have a reinforcing agent(s) and backing Excludes SEAL, NONMETALLIC CHANNEL.

Alternate Parts: 7E32, 9390-00-247-7286, 00-247-7286, 9390002477286, 002477286

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
93JAN 01, 196300-247-728630218 ( NONMETALLIC CHANNEL )
REFERENCE DRAWINGS & PICTURES

OPEN CHANNEL

LEFT INSIDE TAPER W/OUTSIDE RADIUS

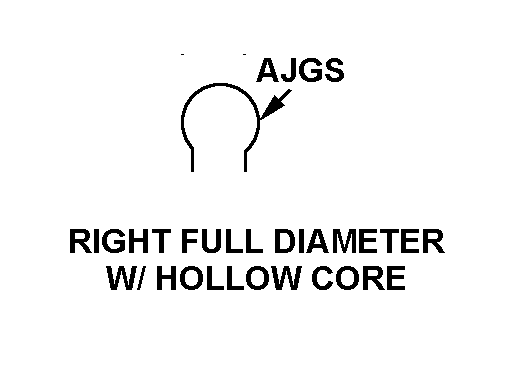

RIGHT FULL DIAMETER W/ HOLLOW CORE

Cross Reference | NSN 9390-00-247-7286
Part Number Cage Code Manufacturer
7E3243999BOEING COMPANY, THEDBA BOEING
Technical Data | NSN 9390-00-247-7286
Characteristic Specifications
CROSS-SECTIONAL SHAPE STYLE OPEN CHANNEL
OVERALL HEIGHT0.500 INCHES NOMINAL
OVERALL WIDTH0.3125 INCHES NOMINAL
RIGHT SIDE FLANGE HEIGHT0.500 INCHES NOMINAL
LEFT SIDE FLANGE THICKNESS0.046875 INCHES NOMINAL
RIGHT SIDE FLANGE THICKNESS0.046875 INCHES NOMINAL
OUTER RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE0.15625 INCHES NOMINAL
BASE FLANGE THICKNESS0.0625 INCHES NOMINAL
OUTER RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE0.15625 INCHES NOMINAL
LEFT-SIDE FLANGE TIP STYLE1 LEFT INSIDE TAPER W/OUTSIDE RADIUS
RIGHT-SIDE FLANGE TIP STYLE RIGHT FULL DIAMETER W/ HOLLOW CORE
RIGHT SIDE FLANGE TOP DIAMETER0.1875 INCHES NOMINAL
MATERIAL
MATERIAL DOCUMENT AND CLASSIFICATIONAMS 3208 NATIONAL SPEC SINGLE MATERIAL RESPONSE
NONMETALLIC HARDNESS RATING45.0 MINIMUM SHORE DUROMETER A AND 55.0 MAXIMUM SHORE DUROMETER A
MINIMUM TENSILE STRENGTH1200 POUNDS PER SQUARE INCH
ENVIRONMENTAL PROTECTION OIL RESISTANT AND LOW TEMPERATURE AND OXIDATION RESISTANT AND WEATHER RESISTANT
