NSN 9390-00-285-5954
Part Details | NONMETALLIC SPECIAL SHAPED SECTION
9390-00-285-5954 A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION.
Alternate Parts: CDS9048, CDS904-8, Q148082, Q1480-8-2, FS976020513, FS97602-0513, Q148082, Q1480-8-2, Q148082, Q1480-8-2, 9390-00-285-5954, 00-285-5954, 9390002855954, 002855954
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | JAN 01, 1963 | 00-285-5954 | 30219 ( NONMETALLIC SPECIAL SHAPED SECTION ) |
REFERENCE DRAWINGS & PICTURES

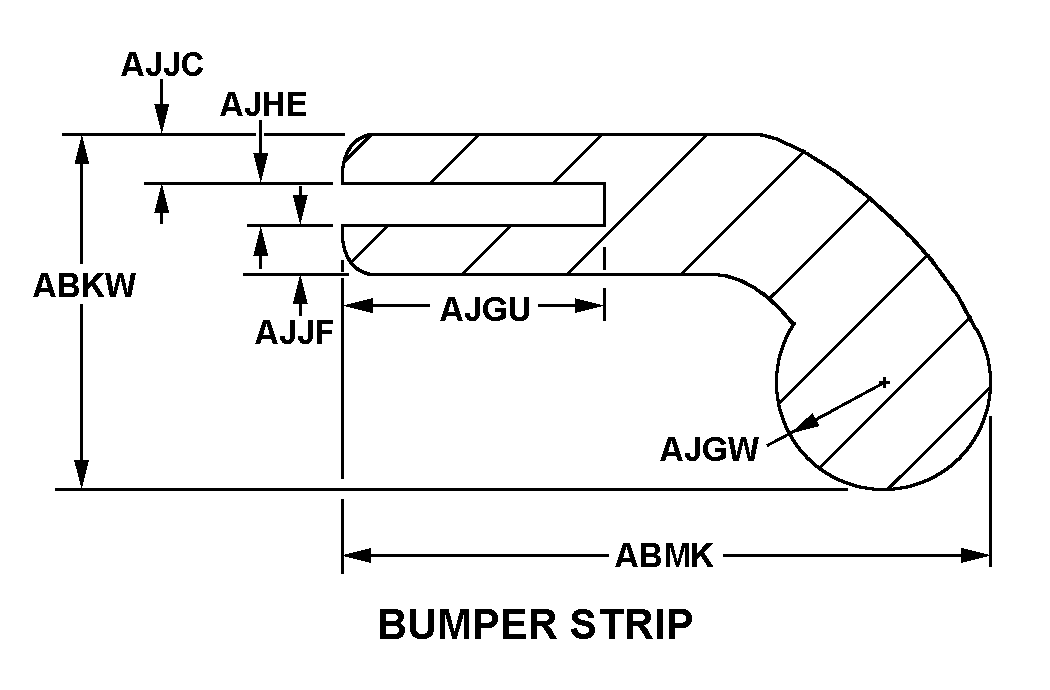

BUMPER STRIP
Cross Reference | NSN 9390-00-285-5954
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CDS904-8 | 81025 | CHASE AIRCRAFT CO INC |
| Q1480-8-2 | 0WLU1 | GENERAL DYNAMICS CORPCONVAIR DIV |
| FS97602-0513 | 89446 | HILLER AIRCRAFT CORPORATION |
| Q1480-8-2 | 14170 | HUGHES MISSILE SYSTEMS COSAN DIEGO |
| Q1480-8-2 | 7B709 | TRACOR FLIGHT SYSTEMS INCSUB OF TRACOR INC |
Technical Data | NSN 9390-00-285-5954
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 8 BUMPER STRIP |
| OVERALL HEIGHT | 0.560 INCHES NOMINAL |
| OVERALL WIDTH | 0.680 INCHES NOMINAL |
| LENGTH | 120.000 INCHES NOMINAL |
| MATERIAL | RUBBER SYNTHETIC |
| NONMETALLIC HARDNESS RATING | BSA55.0 MINIMUM AND CSA65.0 MAXIMUM |
| MINIMUM TENSILE STRENGTH | 1500 POUNDS PER SQUARE INCH |
| ENVIRONMENTAL PROTECTION | HEAT DRY |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY LENGTH |
