NSN 9390-01-029-9073
Part Details | NONMETALLIC CHANNEL
9390-01-029-9073 A structural shape fabricated from nonmetallic material(s) having two vertical flanges that extend in the same direction from each end of a horizontal base. The vertical flanges may have various type tips and additional flanges which extend on the same plane as the base. It may have a reinforcing agent(s) and backing Excludes SEAL, NONMETALLIC CHANNEL.
Alternate Parts: SK262508239TYPE B, SK262-508-239-TYPE B, 9390-01-029-9073, 01-029-9073, 9390010299073, 010299073
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | OCT 25, 1976 | 01-029-9073 | 30218 ( NONMETALLIC CHANNEL ) |
REFERENCE DRAWINGS & PICTURES
OPEN CHANNEL
LEFT W/INSIDE BULBOUS

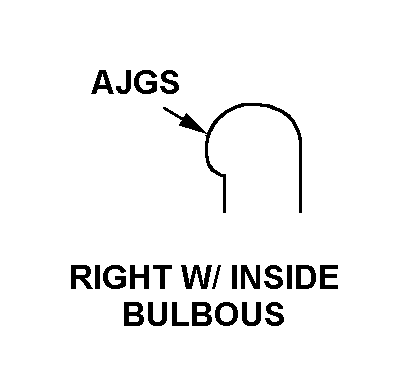

RIGHT W/ INSIDE BULBOUS
Cross Reference | NSN 9390-01-029-9073
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SK262-508-239-TYPE B | 75345 | KIRKHILL-TA CO. |
Technical Data | NSN 9390-01-029-9073
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | OPEN CHANNEL |
| OVERALL HEIGHT | 0.531 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 0.343 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.188 INCHES NOMINAL |
| LEFT-SIDE FLANGE TIP STYLE | LEFT W/INSIDE BULBOUS |
| RIGHT-SIDE FLANGE TIP STYLE | RIGHT W/ INSIDE BULBOUS |
| MATERIAL | RUBBER SYNTHETIC |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-6855,CLASS 1,GRADE 70 MIL SPEC SINGLE MATERIAL RESPONSE |
| NONMETALLIC HARDNESS RATING | 65.0 MINIMUM SHORE DUROMETER A AND 75.0 MAXIMUM SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | 1400 POUNDS PER SQUARE INCH |
| ENVIRONMENTAL PROTECTION | FUEL RESISTANT AND OIL RESISTANT AND LOW TEMPERATURE |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY LENGTH |
