NSN 9390-01-150-3147
Part Details | NONMETALLIC ANGLE
9390-01-150-3147 A structural shape fabricated from nonmetallic material(s) resembling the letter "L" in cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC ANGLE.
Alternate Parts: X181, X-181, 4267571, 426757-1, 9390-01-150-3147, 01-150-3147, 9390011503147, 011503147
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | APR 04, 1983 | 01-150-3147 | 30217 ( NONMETALLIC ANGLE ) |
REFERENCE DRAWINGS & PICTURES
ANGLE

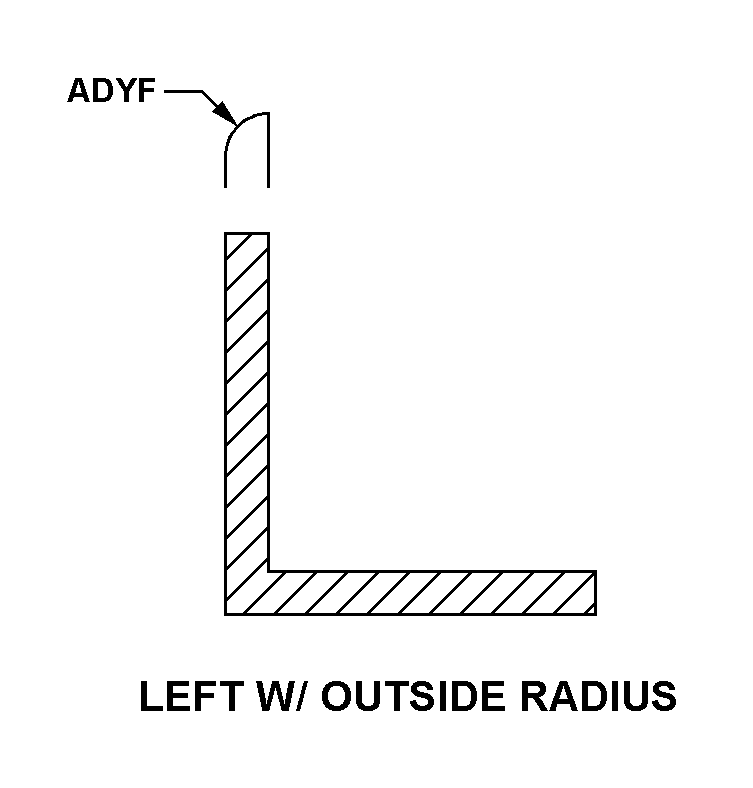

LEFT W/OUTSIDE RADIUS

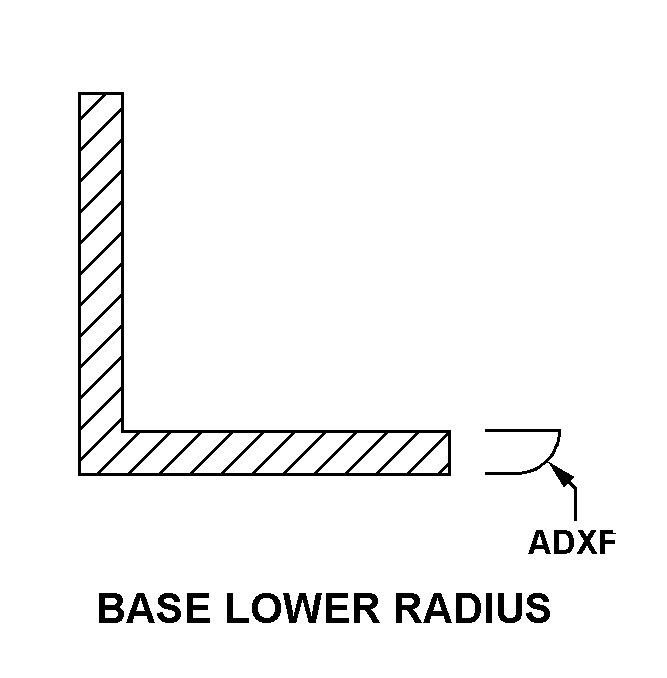

BASE LOWER RADIUS
Cross Reference | NSN 9390-01-150-3147
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| X-181 | 70485 | ATLANTIC INDIA RUBBER CO INC |
| 426757-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Technical Data | NSN 9390-01-150-3147
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | ANGLE |
| OVERALL HEIGHT | 0.688 INCHES NOMINAL |
| OVERALL WIDTH | 0.688 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| OUTER RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.094 INCHES NOMINAL |
| LEFT INSIDE ANGLE IN DEG | 90.0 |
| LEFT-SIDE FLANGE TIP STYLE | LEFT W/OUTSIDE RADIUS |
| LEFT SIDE FLANGE TOP OUTER RADIUS | 0.125 INCHES NOMINAL |
| BASE FLANGE TIP STYLE | BASE LOWER RADIUS |
| RIGHT FLANGE OUTER SIDE RADIUS AT TOE | 0.125 INCHES NOMINAL |
| MATERIAL | RUBBER |
| PHYSICAL FORM | SOLID |
| ENVIRONMENTAL PROTECTION | LOW TEMPERATURE |
